| Features |
●
|
On-the-spot
determination of machine condition using built-in Auto-Diagnostic
Software.

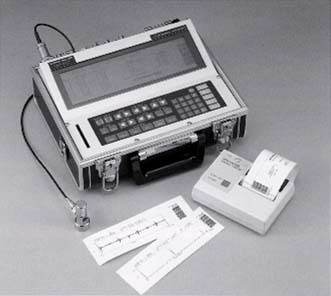

The MK-500 conducts precise vibration analysis utilizing FFT's based on
frequency analysis technology. With its auto-diagnostic software, the
MK-500 can immediately diagnose machine condition, including causes and
locations of troubled areas. The built-in field balancing software allows
on-site balancing when used with the optional high speed, high accuracy
LED sensor. The MK-500 also has all the standard vibrometer functions,
including vibration wave patterns and vibration mode conversions through
differential and integral calculations. A printed copy of available data
can be obtained by using one of the optional external printers. The MK-500
combines the functions of a vibrometer, analyzer and diagnostic unit in
one easy-to-use package. |
| ● |
Increased
memory capacity allow multiple functions. as well as the ability to fit a
multitude of applications. |
| 1. |
The 32K words of RAM
enables the MK-500 to store up to 240 screen images. The stored data can
be transferred to a personal computer through the standard built-in
RS-232C interface. Additional screens can be stored into optional memory
cards. Each card has the capacity to hold an additional 240 screens each,
giving the MK-500 the ability to bring back virtually unlimited data from
the field. Software is available which allows the user's personal computer
to be used for filing and secondary processing of stored data. |
| 2. |
In
addition to the vibration input, the MK-500 has the ability to take audio
and voltage signal data. The unit is equipped with a three-dimensional
display to show transient memory of 32k words or spectrum changes relative
to time. The MK-500 can be used as a multi-purpose analyzer including
transient analysis and machine resonance measurement functions. |
| ● |
Incomparable ease
of handling is accomplished by the reduced number of keys and the use of
an interactive mode.
Using the interactive mode, the next key to be pushed is indicated on the
LCD screen, allowing the unit to be operated by anyone with only a minimum
of training. The operator isn't required to remember complicated
procedures used on conventional analyzers. |
| ● |
Extremely compact size and
battery power allow the MK-500 to be used virtually anywhere.
The entire unit weighs only 5.0kg(11.02lbs) and can be carried
anywhere for on-the-spot diagnostics. In addition to internal battery
power, the MK-500 can utilize on-site AC or DC external power sources if
available. Screens remain stored in memory even after external power is
removed. |
| |
|
|
 | |
 |
|
 |
|
