FEATURES
● Easy, fast calibration - unit prompts operator through procedure
● Grsphic display shows amounts and positions of unbalance
● Menus and programs are accessed through touch screen display
● No setup required - continuous memory
● Automatic spindle and arbor correction
APPLICATIONS
● Single Plane Balancing
● Two Plane Balancing
● Hard Bearing Machines
● Soft Bearing Machines
● Vertical and Horizontal Balancing
● High Speed Production
● Retrofit older Balancing Machines
|
|
| Model 7000 Balancing Instrument with touch screen graphic display provides rapid high speed balancing. | |
DEscRIPTION
The Model 7000 Balancer is designed to provide fast precision balancing for small high volume production operations. Operators select programs, perform setup and calibration procedures, and run balancing operations with the touch of a finger on the flat panel, touch screen.
Amounts and locations of unbalance for one or two correction planes with continuous 360˚, or segmented position indications, are displayed in both color graphic and digital readouts.
The 7000 is programmable. Menus are accessed by touching on-screen program buttons. Coefficients and configurations are permanently stored in the non-volatile memory. Operators recall previous jobs without recalibration, and store new ones for future reference. |
DISPLAY
The Model 7000 Balancer combines all the balancing electronics in a 17" H × 15" W monitor with a 10.4" diagonal touch screen display. The dual scan, LCD, passive screen display provides bright, high resolution graphics and digital readouts. Screen brightness and contrast adjustments are easily accessed on the back of the monitor.

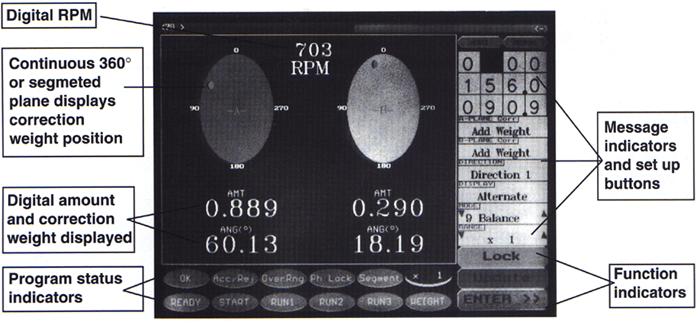

Unbalance correction angles and weight amounts for single or two plane balancing may be viewed both vertically or horizontally on continuous 360˚ or segmented planes. Digital readouts below each circle provide numerical position and amounts.
Menu, program, and control buttons are located on the tool bar on the right hand side of the screen. Menus, programs and controls are differentiated by color coded buttons. |
 |
| SPECIFICATIONS |
| INPUTS |
(2) Two vibration transducers (one pickup for each plane
(1) One reference signal: normally a Model 102 Magnetic
Pickup or Model 105 Photocell Pickup |
| DISPLAY |
10.4" (26.4 cm) diagonal LCD, 4-color, Dual Scan,
passive screen (STN) |
| CONTROL |
Touch Screen Analog Resistive |
| RPM RANGE |
150 to 9,999 RPM |
| MEMORY |
50 calibrations (minimum each Rotor Type) |
| SIZE |
Model 7000 Balancer: 17"H × 15"W × 9"D (43 × 38 × 23 cm)
Model 7000 Display: 16.5"H × 14"W × 3.5"D (43 × 38 × 23 cm)
Display Screen: 10.4" diagonal (26 cm) |
| WEIGHT |
Model 7000 Balancer: 23.5 lbs (10.7 kg)
Model 7000 Display: 15 lbs (6.8 kg) |
| POWER |
115 Vac, 50/60 Hz (optional 230 Vac) |
| TEMPERATURE |
Operating: 32˚F to 130˚F (0˚C to 55˚C)
Storage: -5˚F to 140˚F (-20˚C to 60˚C) |
| OPTIONS |
Printer - Parallel dot matrix with cable |
| DISPLAY INTERFACE |
External VGA: 15-pin D-sub connector for analog monitor
Parallel: Centronix compatible; 25-pin D-sub female connector
- supports uni-directional (8-bit, AT compatible) and
bi-directional (16-bit, PS/2 compatible) modes
Serial: RS-232C, programmable, asynchronous, 9-pin, D-sub male connector supports keyboard |
| |
| BALANCERS (Balancing Instrumentation) |
| MODEL 7000 BALANCER WITH TOUCH-SCREEN DISPLAY |
25,390,000원 |
| |
Consists of: |
7000 Balancer with Touch-Screen Display |
|
| |
|
021-014 AC Power Cord |
|
| |
|
Manual and Calibration Certificate |
|
| BALANCERS ACCESSORIES |
| 102 |
MAGNETIC REFERENCE PICKUP |
260,000원 |
| 105 |
PHOTOCELL REFERENCE PICKUP with 4-Pin Connector |
500,000원 |
| 105A11456 |
PHOTOCELL REFERENCE PICKUP with 3-Pin Connector |
500,000원 |
| 106 |
PHOTOCELL REFERENCE PICKUP with 5-Pin Connector |
500,000원 |
| 107 |
MAGNETIC FIXTURE BASE |
190,000원 |
| 054-15 |
PHOTOCELL REFERENCE CABLE (15') (for 105 Pickup) |
190,000원 |
| 058-15 |
MAGNETIC REFERENCE CABLE (15') (for 102 Pickup) |
190,000원 |
| TAPE |
3M BRAND REFLECTIVE TAPE 1"-WIDE (per foot) |
2,000원 |
| 041-15 |
VIBRATION PICKUP CABLE (15') (for 185 and 158 Pickups) |
190,000원 |
| 041-25 |
VIBRATION PICKUP CABLE (25') (for 185 and 158 Pickups) |
220,000원 |
| 048-15 |
VIBRATION PICKUP CABLE (15') (for 160 and 162 Pickups) |
190,000원 |
| 158 |
VIBRATION PICKUP (Velocity Type) |
780,000원 |
| 160 |
VIBRATION PICKUP (Integrated Electronic Velocity Type) |
780,000원 |
| 162 |
VIBRATION PICKUP (Direct-Prod-Electronic Type) |
990,000원 |
| 185 |
VIBRATION PICKUP (Direct-Prod) |
990,000원 |
| 21-000 |
AC POWER LINE CORD (for Model 743) |
70,000원 |
| 21-014 |
AC POWER LINE CORD (for Model 7000) |
70,000원 |
| 048-6RA |
VIBRATION PICKUP CABLE (6') RIGHT-ANGLE CLAMP |
190,000원 |
| 054-6 |
PHOTOCELL REFERENCE PICKUP CABLE (6') (for 105-A-11456) |
190,000원 |
| 058-6 |
MAGNETIC REFERENCE PICKUP CABLE (6') (for 102 Pickup) |
190,000원 |
| 23-205 |
LAMP INCANDESCENT #382 14-V (for 743 Balancer) |
6,000원 |
| 19-000 |
FUSE ½-AMPERE 250 VOLT SLOW - BLOW |
4,000원 |
| RS-232 |
SERIAL OUTPUT RS-232 (for 743 Balancer) |
590,000원 |
| DISK |
OPTIONAL 3.5" FLOPPY DISK DRIVE (for 7000 Balancer) (Built-in) |
590,000원 | | |
|
|
 | |
 |
|
 |
|
