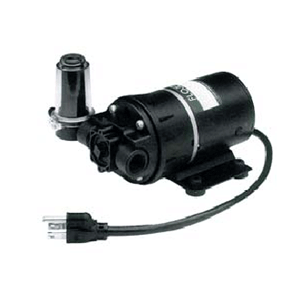

DUPLEX DIAPHRAGM ELECTRIC
PUMPS
When pneumatic pumps are not an option, these electric-powered diaphragm
pumps offer automatic demand control and operate only when liquid flow is
required.
Duplex diaphragm design eliminates troublesome shaft seals. Excellent self-priming
capability allows pump positioning above liquid. Corrosion-resistant polypropylene
construction puts no metal parts in contact with pumped liquid. Handles
small foreign particles such as resin, dust, dirt, and so forth. Recommended
use with in-line strainer.
Must be properly grounded to prevent electrical shock. Supplied with grounding
conductor and grounding-type attachment plug. |
SPECIFICATIONS:
| ● Pump Design: |
Duplex diaphragm |
| ● Materials: |
Housing: Reinforced polypropylene
Elastomers: Santoprene® (UV inks), Viton® (multipurpose) |
| ● Pressure Switch: |
Off @ 60 PSI (4.1 bar)
On @ 40 PSI (2.8 bar) |
| ● Temperature: |
Minimum = 45˚F (7˚C)
Maximum = 160˚F (71˚C) |
| ● Ports: |
3/8 NP |
| ● Motor: |
115V AC, 50/60Hz cycle |
| ● Current: |
.55 A (maximum) |
| ● Weight: |
4 lbs (1.8 kg) |
| ● Flow Rate: |
2 GPM (7.5 L/min) |
IMPORTANT: Not intended for high flash point fluids (i.e.
solvents and such). |
| Part Number |
Description |
Units |
| J004-096 |
DUPLEX DIAPHRAGM ELECTRIC 3/8" VITON® |
EACH |
| J004-095 |
DUPLEX DIAPHRAGM ELECTRIC 3/8" SANTOPRENE® |
EACH |
| |
|
|
 | |
 |
|
 |
|
