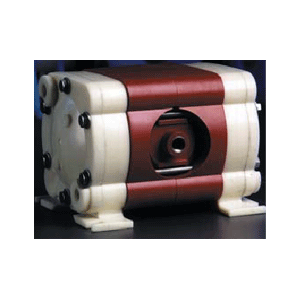

| Durable, easy to maintain, CON-TROL-CURE® 1/4" Polypropylene/Teflon® Double Diaphragm Pump handles tough |
 |
1/4” POLY-TEFLON® DOUBLE
DIAPHRAGM PUMP
Durable, easy to maintain, CON-TROL-CURE® 1/4" Polypropylene/Teflon®
Double Diaphragm Pump handles tough,
heavy viscosity fluids. Polypropylene construction and Teflon® seals offer
resistance to solvents, UV inks and coatings. Pump features leak-free, non-stalling
operation, is fully self-priming up to 17 ft. vertical, and can be mounted
in any operating position. Can be run dry without damage. |
SPECIFICATIONS:
| ● Wet Components: |
Teflon® |
| ● Capacity: |
Adjustable 0-4.3 GPM (16.3 L/min) |
| ● Operating Temperature: |
150ºF (66ºC) |
| ● Max. Air Pressure: |
100 PSI (6.8 bar) |
| ● Maximum Solids: |
Up to 1/16" |
| ● Air Inlet/Outlet: |
1/4" NPSF Female |
| ● Fluid Inlet/Discharge: |
1/4" NPSF |
1/4" Polypropylene/Teflon® Double Diaphragm Pump Drum Kit. This drum
pump kit includes the double diaphragm pump, 40" suction tube and bung
adaptor with 2" NPT straight threads.
1/4" Polypropylene/Teflon® Double Diaphragm Pump Repair Kit. This repair
kit contains 2 diaphragms, 4 gaskets, and O-rings.
IMPORTANT NOTE: Check with ink or coating manufacturer to ensure compatibility
between ink/coating chemistry and this pump's wet components. |
| Part Number |
Description |
Units |
| J004-103 |
POLY/TEFLON® DOUBLE DIAPHRAGM PUMP 1/4" |
EACH |
| J004-103B |
POLY/TEFLON® DD PUMP 1/4” DRUM KIT |
EACH |
| J004-118 |
POLY/TEFLON® DD PUMP 1/4" REPAIR KIT |
EACH |
| |
|
|
 | |
 |
|
 |
|
