AMiR FIA628 High Quality Infrared Meas
Compact, robust and long term stability radiation pyrometer for contactless temperature measurement from -30°C AMiR FIA628 High Quality Infrared Meas. Head for ALMEMO®Devices
Type
Technical
Features: ● Compact,
robust and long term stability radiation pyrometer for contactless temperature
measurement from -30°C.● ●
Particularly suitable for stationary operation
in manufacturing, drying and coating processes in the paper industry, at
fabrication and processing of textiles, plastics and ceramics, in the glass
industry or for applications in building physics. By using ALMEMO® handheld
devices it is also suitable for control measurements.● ●
Calibration certificates available for 3
temperatures.
Types (incl. 2 fastening screws,
mounting angle and 2m ALMEMO® connecting cable):
Standard optics: germanium lens, distant focus, distance
ratio approx. 35:1
Meas. field diameter: 40mm at 1000mm distance from test object
FIA6284K Measuring range: -30 to +100°C
FIA6285K 0 to 200°C
FIA6286K 0 to 500°C
Focus point optics: germanium lens, proximity focus
Meas. field diameter: 4.5mm at 160mm distance from test object
FIA6284N Measuring range: -30 to +100°C
FIA6285N 0 to 200°C
FIA6286N 0 to 500°C
Focus point optics: germanium lens, with proximity focus
Meas. field diameter: 1mm at 25mm distance from test object
FIA6284M Measuring range: -30 to +100°C
FIA6285M 0 to 200°C
FIA6286M 0 to 500°C
Optics: none, silicon surface plate, distance ratio approx.
4.5:1
Meas. field diameter: 40mm at 100mm distance from test object
FIA6284S Measuring range: -30 to +100°C
FIA6285S 0 to 200°C
FIA6286S 0 to 500°C
Focus point optics: germanium lens, with proximity focus
Meas. field diameter: 3mm at 110mm distance from test object
FIA6284L Measuring range: -30 to +100°C
FIA6285L 0 to 200°C
FIA6286L 0 to 500°C
Option:
OI9628US Objective front attachment for deviation
of the beam path by 90°, factory mounted and adjusted
Accessories:
ZI9628OS Setup aid for optical slip-on view finder
ZI9628OS9 Setup aid for optical slip-on view finder with 90°
deviation
ZI9628LP Setup aid slip-on laser pointer
ZI9628BV Air blow equipment incl. protective pressure tube
for oil and water-free air (0.3bar) mounted and adjust.
ZI9628WK Cooling jacket for air or water
ZI9628EWN Emission converter (only for FI A628 xN) for plain
metal rolls (spring steel strap with Teflon foil)
ZI9628EB Spare foil for emission converter, 10m
ZX1070EL2 Emission lacquer up to 200°C
ZX1070EL4 Emission lacquer up to 400°C
Technical Data:
Accuracy: ±1°C, ±0.015 x [object temperature -
meas. head temperature]
Maximum resolution: measuring head: 0.3°C at emissivity 1
Temperature resolution: NET (Noise Equivalent Temperature) at emissivity
1:
50 320 720 1000
-25°C ±2.0 K ±0.9 K ±0.6 K ±0.5 K
20°C ±1.3 K ±0.6 K ±0.4 K ±0.4 K
100°C ±1.1 K ±0.5 K ±0.3 K ±0.3 K
300°C ±1.2 K ±0.5 K ±0.4 K ±0.3 K
Spectral range: 7 to 16μm
Emissivity: 0.5 to 1 adjustable
Tu (ambient temperature): ambient temperature of measuring object, adjustable
Response time: selectable T90 = 50ms, 320ms, 720ms and 1s (basic
setting 1 )
Output: 0 to 1V nonlinear, linearisation in all ALMEMO® devices
Linearisation accuracy: for ALMEMO® devices: 0.1K ±0.05% of meas. value
Power supply: through ALMEMO® devices
Current consumption: max. 70mA
Permiss. ambient temperature: 0 to 70°C
with cool. jacket permiss. up to: 130°C with air cooling 3 bar, 20°C
Storage temperature: -20 to +85°C
Protection system: IP 65 according to DIN4005
Weight: 280g

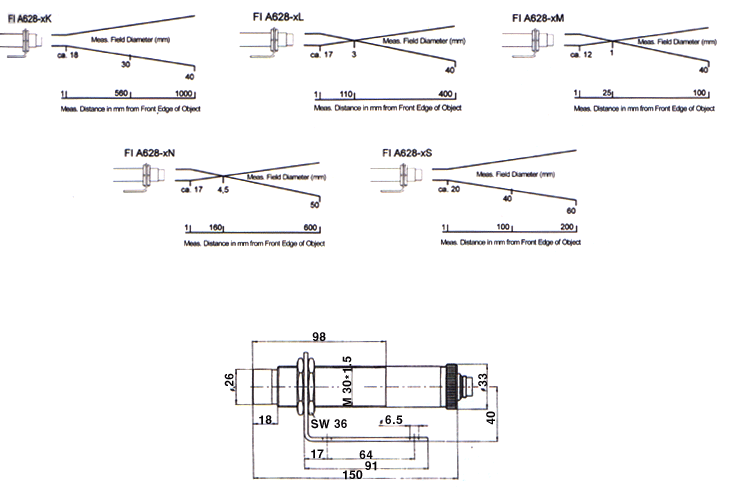

Measuring Field Diagram:
