Analog linearisation. Various standard measuring ranges. Digital display of the actual value in red or green.

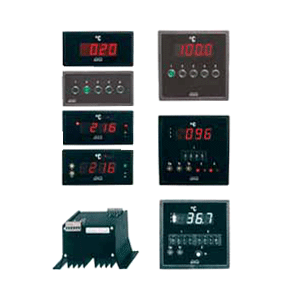

THERM 4100/4200
Display Units, Limit Value Switches, Controll

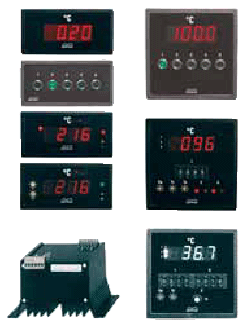

¡Ü Analog linearisation. Various standard measuring ranges. Digital display of the actual value in red or green. Rear connectors with removable connector blocks.
¡Ü  Limit value switches and controllers:
Analog contact setting through slit potentiometer by pressing a key, which causes the nominal value to be displayed instead of the actual value. Digital setting of the nominal value via code switches (THERM 4200 only). Adjustable feedbacks with normal (standard), fast or slow operation.
¡Ü  Safety functions:
Sensor breakage protection, meas. circuit monitoring through additional limit value channels. For limit value switches and
controllers: automatic shut-off in case of a power failure.
¡Ü  Various selective options allow for an optimal adaptation and, as a result, for infinite applications in industrial production and control engineering.
Technical Data:
Measuring input:  terminal blocks, removable
Sensor power supply: options: 24VAC, 12VAC,
12VDC, (max. 40mA)
Measuring method: dual-slope integrating
Conversion rate: 3 measurements per second
Input impedance: voltage input 100k§Ù,
current input 100§Ù
System accuracy: ¡¾1 digit
Temperature drift: 0.05%/K
Cold junction compensation: effective in range
-10 to +50¡ÆC
Equipment:
Display: 31/2-digit, 7-segment LED red
(optional green), 13mm high
Outputs:
Limit val. switches & controllers: center-zero relay 230V,
4A ohmic load
Switching hysteresis: < 2 digits, or as specified
Continuous controllers: proportional output signal 0 to
20mA for Triac power output
stage
Analog output (option): not in case of cont. controllers
Power supply: 230V 50-60Hz;
optional: 110V 60Hz, 12VDC,
24VAC, 24VDC
Current consumption: approx. 4.5VA
Housing:
Dimensions: 4100: W 96x H 48x D 160mm,
panel opening: 90 x 42.5mm
4200: W 96x H 96x D 160mm,
panel opening: 90 x 90mm
Weight: approx. 400-600g
Permiss. ambient temperature: 0 to 50¡ÆC
Storage temperature: -30 to +70¡Æ

Options for Power Supply:
OT4000U2 DC voltage 12VDC
OT4000U4 DC voltage 24VDC
OT4000U3 AC voltage 24VAC, 50/60Hz
OT4000U5 AC voltage 110VAC, 50/60Hz
Options for Analog Outputs:
OT4000R1 Analog output 5mV/¡ÆC
OT4000R5 Analog output 0 to 1V
OT4000R2 Analog output 0 to 10V
OT4000R3 Analog output 0 to 20mA
OT4000R4 Analog output 4 to 20mA
Options for Sensor Power Supply on request
Options for Additional Coupled Contacts on request

Types
Display Units:
MT4190 Panel device 96 x 48mm
MT42905 Panel device 96 x 96mm with meas. point change-over switch 5-fold
UT41005 Meas. point change-over switch 5-fold, 96 x 48mm
Limit Value Switches:
MT4116 Limit value switch 96 x 48mm, 1 limit value analog adjustable
MT41161 Limit value switch 96 x 48mm, 2 limit values analog adjustable
MT4216 Limit value switch 96 x 96mm, 1 limit value analog adjustable
MT42161 Limit value switch 96 x 96mm, 2 limit values analog adjustable
MT4217 Limit value switch 96 x 96mm, 1 limit value digital adjustable
MT42171 Limit value switch 96 x 96mm, 2 limit values digital adjustable
MT42182 Limit value switch 96 x 96mm, 1 limit value digital adjustable and 2 limit values analog adjustable
MT42183 Limit value switch 96 x 96mm, 2 limit values digital adjustable and 2 limit values analog adjustable
Two-Step Controllers:
RT4126 Two-step controller 96 x 48mm, control contact analog adjustable
RT4226 Two-step controller 96 x 96mm, control contact analog adjustable
RT42261 Two-step controller 96 x 96mm, control contact analog adjustable, 1 additional limit value analog
RT4227 Two-step controller 96 x 96mm, control contact digital adjustable
RT42271 Two-step controller 96 x 96mm, control contact digital adjustable, 1 additional limit value digital
RT42281 Two-step controller 96 x 96mm, control contact digital adjustable, 1 additional limit value analog
RT42282 Two-step controller 96 x 96mm, control contact digital adjustable, 2 additional limit values analog
RT42282D Two-step controller 96 x 96mm, control contact digital adjustable, 1 limit val. digital, 1 limit val. analog
RT42283 Two-step controller 96 x 96mm, control contact digital adjustable, 1 limit val. digital, 2 limit val. analog
Three-Level Controllers:
RT4136 Three-level controller 96 x 48mm, control contact and dead zone analog adjustable
RT4238 Three-level controller 96 x 96mm, control contact digital adjustable, dead zone analog adjustable
Three-Level Step Controllers:
RT4146 Three-level step controller 96 x 48mm, control contact and dead zone analog adjustable
RT4248 Three-level step controller 96 x 96mm, control contact digital adjustable, dead zone analog adjustable
Continuous Controllers:
RT4156 Continuous controller 96 x 48mm, control output analog adjustable
RT4256 Continuous controller 96 x 96mm, control output analog adjustable
RT42561 Continuous controller 96 x 96mm, control output analog adjustable, 1 additional limit value analog
RT4257 Continuous controller 96 x 96mm, control output digital adjustable
RT42571 Continuous controller 96 x 96mm, control output digital adjustable, 1 additional limit value digital
RT42581 Continuous controller 96 x 96mm, control output digital adjustable, 1 additional limit value analog
RT42582 Continuous controller 96 x 96mm, control output digital adjustable, 2 1 additional limit values analog
RT42582D Continuous controller 96 x 96mm, control output digital, 1 limit value digital, 1 limit value analog
RT42583 Continuous controller 96 x 96mm, control output digital, 1 limit value digital, 2 limit values analog
Triac Power Output Stages:
Technical data: Input 4 to 20mA, approx. 250§Ù; ohmic load cos ¥õ = 1; operating voltage 230V - 14% +8%, 45 - 65Hz;
Protection: fuse not integrated. The device must be externally protected according to the specified maximum current by using a fastacting fuse.
ZB4000TR12 Triac power output stage 12A, for 300 to 2000VA
ZB4000TR16 Triac power output stage 16A, for 350 to 2800VA
