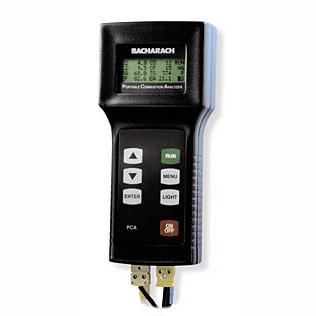

BA248040 PCA 10 Portable Combustion Analyzer
    · 고객선호도 :
    · 제조사 : DAVIS
    · 제품번호:BA248040
    · 시중가격 :
    · 판매가격 :
    · 포 인 트 :
    · 수 량 :


회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
배송은 평균 2~3일정도 예상됩니다.
                    (0)                     (0)                     (0)
An affordable, easy to use instrument for CO safety and efficiency testing of combustion applications.
Portable Combustion Analyzer (PCA)
An affordable, easy to use instrument for CO safety and efficiency testing of combustion applications.
An affordable, easy to use and reliable instrument for CO safety and efficiency testing of combustion applications. The new PCA is the perfect tool for every service technician in determining safety and efficiency of all combustion appliances. It has a large LCD display with backlight that shows eight different combustion values simultaneously. The PCA will directly measure and display flue gas O2, temperature, CO (option) while computing and displaying combustion efficiency, excess air, CO2 and CO air free. Up to 10 sets of tests can be stored and downloaded into an infrared printer for a permanent record. The PCA includes a powerful industrial pump, probe and hose assembly with a filter and water trap, four (4) AA batteries, user guide and an instruction manual which are all packaged into a custom carrying case... just turn it on and go!

Applications
The new PCA is the perfect tool for service technicians who need to determine safety and/or efficiency in combustion applications. Residential furnaces, hot water heaters, boilers and ovens are just a few typical areas of use. The device can also be used in gas utility and weatherization applications where indoor air safety is a concern. By utilizing the optional printer, you can provide hard-copy evidence of the need for repairs or replacement of your customer’s appliances. They will appreciate a record of your tests

Only the PCA measures CO air free... Here’s what that means to you
The CO air free unit of measurement is computed by the PCA from the CO and O2 measurements. This calculated value is a concept for determining the amount of CO present in a sample by compensating for the amount of excess air provided by the burner. In other words, the CO air free measurement eliminates the excess air dilution caused by primary and secondary air. American National Standards Institute (ANSI Z21) specifies the use of PPM CO air free as a unit of measure when testing certain appliances. The following are the ANSI standards 200 PPM CO air free on an unvented space heater; 400 PPM CO air free on furnace flue gas; and 800 PPM CO air free on an unvented gas oven.

Our most important goal is to meet the needs of you, our customer. We listened to you and developed the PCA around your needs and requirements. We also contacted several HVAC associations including ACCA, RSES, NAOHSM and others for their input. As a result, product features were incorporated into the design of the PCA to meet or exceed your expectations. Some of the features include a simple keypad for user-friendly operation, an easy to read display showing eight different values simultaneously, an optional infrared printer to document test results and a rugged, lightweight case for added versatility during operation and transport.


The PCA directly measures and displays:
  • Oxygen (O2)
  • Carbon Monoxide (CO)
  • Carbon Dioxide (CO2)
  • CO air free
  • Draft
  • Ambient Temperature
  • Combustion Efficiency
  • Excess Air
  • Stack Temperature

Features
  • Directly measures and displays flue gas O2, temperatures, Draft and CO
  • Calculates and displays combustion efficiency, excess air, CO2 and CO air free
  • Large display shows eight (8) different values simultaneously with backlight
  • Long life, disposable batteries with an optional 120 VAC power supply
  • Two year warranty on instruments and sensors
  • Draft and CO measurements (optional)
  • Eight (8) North American fuels
  • Optional probes for a variety of applications
  • Dated results can be recalled to the display screen at any time
  • Separate temperature sensor for combustion air


CAT NO. MODEL DEscRIPTION AVAIL PRICE
BA248040   0024-8040 (PCA 10)   PCA 10 PORTABLE COMBUSTION ANALYZER   Yes   2,268,000
Oxygen measurement, comes complete with carrying case, probe and hose assembly, factory calibrated & installed sensor(s), instruction manual, user guide, batteries & 2 year warranty.
BA248042   0024-8042 (PCA 20)   PCA 20 PORTABLE COMBUSTION ANALYZER   Yes   3,261,600
Oxygen & CO measurement, comes complete with carrying case, probe and hose assembly, factory calibrated & installed sensor(s), instruction manual, user guide, batteries & 2 year warranty.
BA248043   0024-8043 (PCA 25)   PCA 25 PORTABLE COMBUSTION ANALYZER   Yes   3,682,800
Oxygen, CO2 and draft measurement, comes complete with carrying case, probe and hose assembly, factory calibrated & installed sensor(s), instruction manual, user guide, batteries & 2 year warranty.
BA240788   0024-0788   OPTIONAL REPLACEMENT OXYGEN SENSOR FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   313,200



Please inquire for NIST Certification
BA240789   0024-0789   OPTIONAL REPLACEMENT CO SENSOR FOR PCA SENSOR FOR Bacharach Portable Combustion Analyzer   Yes   637,200



Please inquire for NIST Certification
BA240797   0024-0797   OPTIONAL REPLACEMENT DRAFT SENSOR FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   181,440



Please inquire for NIST Certification
BA240886   0024-0886 HP82240B   OPTIONAL IR PRINTER FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   626,400



Please inquire for NIST Certification
BA240885   0024-0885   OPTIONAL EXTERNAL POWER SUPPLY 120V FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   192,240



Please inquire for NIST Certification
BA240887   0024-0887   OPTIONAL PRINTER PAPER, (1 ROLL) FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   23,760



Please inquire for NIST Certification
BA243003   0024-3003   OPTIONAL STANDARD PROBE AND HOSE ASSEMLFOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   486,000



Please inquire for NIST Certification
BA243004   0024-3004   OPTIONAL DRAFT PROBE AND HOSE ASSEMBLY FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer   Yes   529,200



Please inquire for NIST Certification
