| The "47" Series is available with pressure ranges from 0-10 to 0-20K PSI. |

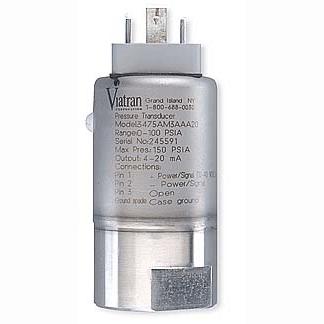

Viatran's Models 247 and 347 are designed for applications where very rugged yet inexpensive pressure transmitters are required.
This enables Viatran to provide the advantages of bonded foil sensing technology at prices typical of less reliable semiconductor sensors.
The "47" Series is available with pressure ranges from 0-10 to 0-20K PSI.
The "47" Series has zero adjustment control that also makes setup fast and easy.
When your application requires a large quantity of rugged pressure transmitters, Viatran's "47" Series offers the same high quality standards that you build into your equipment. |
| |
|
Features |
- Low price
- Adjustable zero
- Resistance to pressure spikes
- Cost effective DIN connector
- Welded stainless steel construction
|
| |
|
Applications |
- Hydraulic systems
- Injection molding
- Die casting
- Off road vehicles
- Compressors and pumps
- High volume usage
|
| | | SPECIFICATIONS
|
Full Scale Pressure Range (FSPR) |
0-10, 0-15, 30, 50, 75, 100, 200, PSIG, PSIA, 0-300, 400, 500, 750, 1K, 1500, 2K , 3K, 4K, 5K, 7500, 10K, 15K, 20K, PSIG |
| Non-Linearity (Best Fit Straight Line) |
≤ ± 0.5% FSO |
| Hysteresis & Repeatability |
< .25% FSO |
| Full Scale Output (FSO) |
Series A: |
5 VDC ± 2% at 70°F |
| Series B: |
16 mA ± 2% at 70°F |
| Resolution |
Infinite |
| Long Term Stability |
≤ ±0.5% FSO per 6 months |
| Compensated Temperature Range |
70°F to 170°F |
| Maximum Operating Temperature Range |
200°F |
| Minimum Operating Temperature Range |
-20°F |
| Electrical |
| Supply Voltage |
10 to 40 VDC |
| Output Signal |
Series A: |
0 to 5 VDC |
| Series B: |
4 to 20 mA |
| Mechanical |
| Pressure Connectors |
1/4" NPT Female |
| Proof Pressure |
1.5 times FSPR or 25K PSI, whichever is less |
| Burst Pressure |
5 times FSPR or 30K PSI, whichever is less |
Standard Pressure Ranges, please choose code that matches your specific range
|
Code |
Range |
Code |
Range |
Code |
Range |
Code |
Range |
|
AA |
0-5 |
AM |
0-100 |
AW |
0-750 |
BE |
0-4000 |
|
AB |
0-10 |
AP |
0-200 |
AY |
0-1000 |
BF |
0-5000 |
|
AC |
0-15 |
AR |
0-300 |
AZ |
0-1500 |
BH |
0-7500 |
|
AF |
0-30 |
AT |
0-400 |
BA |
0-2000 |
BM |
0-10K |
|
AH |
0-50 |
AU |
0-500 |
BC |
0-3000 |
BP |
0-15K |
|
AK |
0-75 |
|
|
|
|
|
|
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| VI247 |
|
247G |
|
Pressure Transmitters, Specify Range |
|
Yes |
|
429,840 |
| VI2471 |
|
247A |
|
Absolute Pressure Transmitter (<200 PSI) |
|
Yes |
|
529,200 |
| VI2472 |
|
247V |
|
Vacuum Pressure Transmitter (<15 PSI), Specify Range |
|
Yes |
|
429,840 |
| VI347 |
|
347G |
|
Pressure Transmitter, Specify Range |
|
Yes |
|
388,800 |
| VI3471 |
|
347A |
|
Absolute Pressure Transmitter (<200 PSI), Specify Range |
|
Yes |
|
529,200 |
| VI3472 |
|
347V |
|
Vacuum Pressure Transmitter (<15 PSI), Specify Range |
|
Yes |
|
429,840 | | |
|
|
 | |
 |
|
 |
|
