| It is based on proven mico-machined silicon technology that offers high reliability, long-term stability |

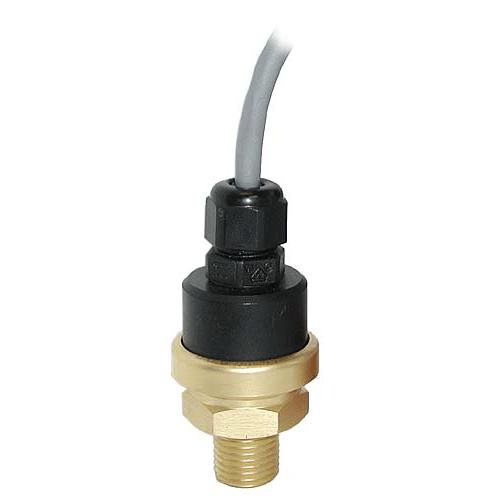

| The Model DCT Transducer is designed for general industrial and commercial requirements offering excellent performance over a wide range of applications. It is based on proven mico-machined silicon technology that offers high reliability, long-term stability, and low cost relative to competing technologies. It combines precision pressure sensing with a rugged brass construction that allows it to operate reliably under the most extreme environmental conditions.
The Model DCT Pressure Transducer is available in a variety of mounting and electrical options and pressure ranges from 6 PSI to as high as 5,000 PSI. It is fully digitally compensated for effects of pressure and temperature changes and calibrated to produce industry standard electrical outputs. The Model DCT accepts both unregulated and regulated excitation voltages and provides output signals such as 1-5VDC, 1-6VDC, 4-20mA, or a ratiometric 0.5 to 4.5VDC
The Model DCT is easy to install and maintain. No adapters are required, and there is no need for field calibration. It offers superior accuracy, below 0.25% span and below 1% over a wide compensated temperature range. Its design incorporates a diaphragm and brass construction for use with most media types. |
| |
|
Features |
- .20% accuracy typical .3% worst
- Excellent long term stability
- Solid State / Industrial grade
- Temperature compensated
- Many ranges up to 5,000 psi
- mv, 4-20mA, 1-5VDC, 1-6VDC output
- Vacuum and compound pressure ranges available
- Low cost
|
| | | SPECIFICATIONS
|
Pressure Range |
Vacuum up to 500psig |
| Reference Accuracy |
±0.2% FS TYP, ±-.3 FS MAX |
| (Consult factory for ranges below 15psi) |
Total Error Band
(Includes temperature effects) |
±1% FS |
| 1 Year Stability |
<0.25% FS |
| Outputs |
1-5VDC |
1-6VDC |
10mv/v |
4-20mA |
| Input Supply Voltage |
9-30VDC |
9-30VDC |
10VDC Max. |
11-30VDC |
| Load Limitation |
50KΩ Min. |
50KΩ Min. |
|
500Ω Max. |
| Operating Temperature |
-40 to 80° C |
| Process Temperature |
-40 to 125° C |
| Compensated Temperature |
-25 to 75° C |
| Overpressure |
2X FS or 750psig, whichever is less |
| Burst Pressure |
3X FS or 750psig, whichever is less |
| Vibration |
10G, 55-2,000 Hz. |
| Shock |
30G |
| EMC |
Rated 3V/m (Requires "PE" option) |
| Process Wetted Material |
Brass, Borosilicate, Silicon, RTV, Epoxy |
| Electronics Housing Material |
1/8-27 NPT., 1/4-19 NPT. |
| Electrical Connection |
Cable DIN Packard |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| AM300147 |
|
DCTC0030BPT022 |
|
Pressure Transducer 1/4 NPT 4-20mA, -14.7-30psi |
|
Yes |
|
421,200 |
| AM300060 |
|
DCTG0006BPT022 |
|
Pressure Transducer 1/4 NPT 4-20mA, 0-6psi |
|
Yes |
|
421,200 |
| AM300030 |
|
DCTG0030BPT022 |
|
Pressure Transducer 1/4 NPT 4-20mA, 0-30psi |
|
Yes |
|
421,200 |
| AM300100 |
|
DCTG0100BPT022 |
|
Pressure Transducer 1/4 NPT 4-20mA, 0-100psi |
|
Yes |
|
421,200 |
| AM300300 |
|
DCTG0300BPT022 |
|
Pressure Transducer 1/4 NPT 4-20mA, 0-300psi |
|
Yes |
|
421,200 |
| AM300500 |
|
DCTG0500BPT022 |
|
Pressure Transducer 1/4 NPT 4-20mA, 0-500ps |
|
Yes |
|
421,200 | | |
|
|
 | |
 |
|
 |
|
