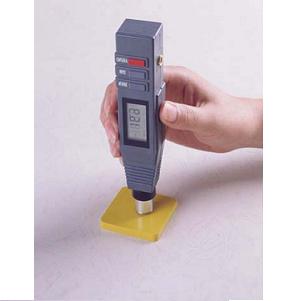

TH200 Shore Rubber Hardness Tester
Main function:
TH200 cancels and locks in the peak value, makes the average value calculation and under-voltage alarming.
The RS232 communication cable connector to be carried out with the machine can carry out the data communication with computer.
Automatically switch off
Measuring range: 0-100HA
Measurement deviation: within 20-90HA
HA < +1 grade
Technical Specifications
Test scales available |
Shore A |
Standards |
DIN53505,ASTM D2240 |
Result display |
Hardness result, Average value, Max value (peak value lock), Battery indication |
Result display resolution |
0.1 unit |
Data output |
RS-232 |
Statistics |
Total test, Highest hardness, Average |
Features |
Automatic shut off, battery low alarming |
Operating temperature |
0 - 40°C |
Power requirements |
3 x 1.25V batteries(V357) |
battery life |
300Hours |
Dimensions |
145g |
Standard delivery
- Main unit
- Batteries
- Case
- Manual
- Time Certificate
Optional accessories
- Data cable to pc
- Operating stand with constant load THS-200S
| |
|
|
| |
|
|
|
|
