| IT8928 Temperature range:-40°F to 185°F (-40° to 85°C),IT8926 Temperature range:-40°F to 185°F(-40° to 85°C) |
|

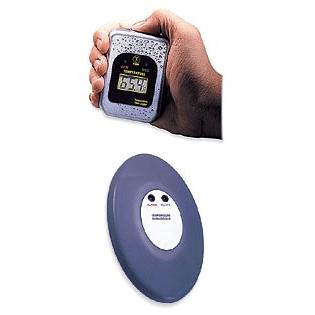

IT8926 & IT8928 |
- LCD screen for displaying data
- Rugged water resistant housing
- °F or °C selectable
- Start / stop logging by programmed schedule or internal magnetic switch
- Readings may be taken at intervals from 1 second to 2 hours
- Stored readings may be downloaded to any PC and viewed or graphed
- Sample point: 1K, 2K, 4K, 8K, 12K, 16K records for selection
- User defined min and max alarm settings
- Thermistor temperature sensor
- Selectable non-sleep mode for viewing current temperature and humidity conditions. May be turned off after readings are stored
- NOTE: The datalogger by itself cannot function without the software and docking station
|
| |
|
IT8808 (Temperature only) |
- Waterproof housing
- Start / stop logging by programmed schedule or internal magnetic switch
- Readings may be taken at intervals from 1 second to 2 hours
- User-defined min/max alarm setting
- Data is retained in non-volatile memory, no loss when battery is low or has been removed or requires replacement
- Real-time clock memory
- Docking station, RS-232 cable, Windows® 95/98/2000/NT/XP compatible software and 3.6V lithium battery sold separately
- NOTE: The datalogger by itself cannot function without the software and docking station Model IT8927
|
| | |
|
IT980 (Desktop Printer for Dataloggers) |
- For use with the datalogger models IT8926, IT8928, IT8808
- Prints collected data in text or graph format
- Small size fits in the palm of your hand
- LCD display with Matrix LCD
- Input: RS-232C Data: 8 bits; Stop: 1 bit
- Baud rate selectable at 4800 bps or 9600 bps
- Dimension: 4.72” x 5.9” x 1.88”
- Includes printer, thermo-paper and batteries
- Set up data loggers without a personal computer for start recording, sampling interval, recording points, hi/low temperature or humidity alarm setting, °C or °F
- Printing characteristics: a) Voltage compensating to stabilize the contrast of printing, b) Paper jam protection, c) Paper feed, d) Printing contrast: 1 to 9, e) Print type by report or graphic (Font: Roman 8)
|
| |
|
Interface Kit |
- Downloads collected data to your PC via the docking station and RS-232 cable graphing and printing
- Using the INT8818 will enable you to display all collected information on your PC or laptop
- Software compatible with Windows® 95/98/2000/NT/XP
- Includes data logger base, RS-232 cable and Windows® software
- NOTE: This kit is necessary in order to correctly use all data loggers
|
| | |
IT8928 SPECIFICATIONS
| Temperature range |
-40°F to 185°F (-40° to 85°C) |
| Temperature accuracy |
±1°F from -4 to 122°F; ±2°F at other ranges
±0.6°C from -20 to 50°C; ±1.2°C at other ranges |
| Sample data |
up to 16,000 points |
| Cable length |
59" (150 cm) with DB9 connector |
| Dimensions |
2.16" w x 3.70" h x 0.85" d (55 x 94 x 21.5 mm) |
| Display size |
0.47" x 1" (12 x 25.5 mm) |
IT8926 SPECIFICATIONS
| Temperature range |
-40°F to 185°F (-40° to 85°C) |
| Temperature accuracy |
±1°F from -4 to 122°F; ±2°F at other ranges
±0.6°C from -20 to 50°C; ±1.2°C at other ranges |
| Humidity Range |
0 to 100% RH |
| Humidity Accuracy |
±3% RH |
| Sample data |
up to 16,000 points |
| Cable length |
59" (150 cm) with DB9 connector |
| Dimensions |
2.16" w x 3.70" h x 0.85" d (55 x 94 x 21.5 mm) |
| Display size |
0.47" x 1" (12 x 25.5 mm) |
IT8808 SPECIFICATIONS
| Temperature range |
-40°F to 185°F (-40° to 85°C) |
| Temperature accuracy |
±1°F from -4 to 122°F; ±2°F at other ranges
±0.6°C from -20 to 50°C; ±1.2°C at other ranges |
| Sample data |
up to 8,000 points |
| Cable length |
59" (150 cm) with DB9 connector |
| Dimensions |
2.60" w x 4.13" h x 0.86" w (66 x 105 x 22 mm) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| IT8928 |
|
DL8828 |
|
Digital Temperature Datalogger |
|
Yes |
|
213,840 |
| IT8808 |
|
DL8808 |
|
Temperature Datalogger |
|
Yes |
|
213,840 |
| IT8926 |
|
DL8829 |
|
Digital Temperature/Humidity Datalogger |
|
Yes |
|
270,000 |
| IT8927 |
|
INT8818 |
|
Datalogger Base, Windows® Software & Base |
|
Yes |
|
151,092 |
| IT980 |
|
EP980 |
|
Desktop Printer for Dataloggers |
|
Yes |
|
170,640 |
| |
|
|
 | |
 |
|
 |
|
