WK9010300004WI Glass Thermometer
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:WK9010300004WI
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

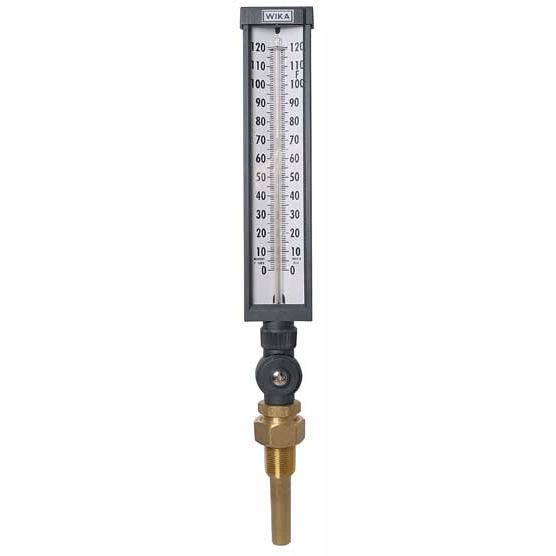

Glass Thermometer, Range: 0 / 120 ¡ÆF, Stem Length: 3 1/2" WIKA industrial glass thermometers
WIKA industrial glass thermometers offer quick, easy-to-read temperature measurement for tough applications. Glass/mineral reinforced GE Valox ¢ç housings and spring-mounted windows contribute to impact, shock and vibration resistance. WIKA industrial glass thermometers are the ideal choice for process piping, HVAC/R applications, diesel engines and compressors.

The Just-Rite model, available with 7" and 9" scales, has a fully adjustable connection for easy reading at any angle. WIKA 6" industrial glass thermometers are manufactured in straight and back connected configurations, and come with a standard dual threaded brass socket with both 1/2" and 3/4" NPT connections.

9 Inch Scale, 1 1/4" - 18" Swivel Nut Connection


Features
  • Case: V-shaped case parts are molded of rugged GE Valox ¢ç 735 polyester, finished in textured black. Heavy glass window is spring-mounted to prevent rattles
  • Stem: To ensure sensitivity, bulb chambers are precision ground aluminum, tapered for a close-tolerance metal-to-metal contact with matching tapered socket. Graphite is used as a conductor between bulb chamber and glass tube
  • Locking Device: Independent adjustable case locknut and angle adjusting screw provide 360¡Æ positioning of case and stem
  • Adjustable Joint: Matching GE Valox ¢ç joint completely encloses capillary for thermal system protection
  • Tube and Capillary: Mercury-filled (Spirit Fill available), ¡°Red-Reading¡± magnifying lens tube is silicone shock-mounted to increase service life. Guaranteed accurate to within 1% of scale range
  • Scale: Permanently baked-on, bold black graduations are printed on white-coated aluminum. No mounting screws obscure scale. Scale adjusts through locking device at top of instrument

CAT NO. MODEL DEscRIPTION AVAIL PRICE
WK9010300004WI   ¡¡ ¡¡ Glass Thermometer, Range: 0 / 120 ¡ÆF, Stem Length: 3 1/2"   Yes   108,324
WK9010300007WI   ¡¡ ¡¡ Glass Thermometer, Range: 30 / 240 ¡ÆF, Stem Length: 3 1/2"   Yes   108,324
WK9010300204WI   ¡¡ ¡¡ Glass Thermometer, Range: 0 / 120 ¡ÆF, Stem Length: 3 1/2"   Yes   108,324
WK9010300205WI   ¡¡ ¡¡ Glass Thermometer, Range: 0 / 160 ¡ÆF, Stem Length: 3 1/2"   Yes   108,324
WK9010300206WI   ¡¡ ¡¡ Glass Thermometer, Range: 30 / 180 ¡ÆF, Stem Length: 3 1/2"   Yes   108,324
WK9010300207WI   ¡¡ ¡¡ Glass Thermometer, Range: 30 / 240 ¡ÆF, Stem Length: 3 1/2"   Yes   108,324
WK9010600204WI   ¡¡ ¡¡ Glass Thermometer, Range: 0 / 120 ¡ÆF, Stem Length: 6"   Yes   156,060
WK9010600208WI   ¡¡ ¡¡ Glass Thermometer, Range: 30 / 300 ¡ÆF, Stem Length: 6"   Yes   156,060
WK9010900204WI   ¡¡ ¡¡ Glass Thermometer, Range: 0 / 120 ¡ÆF, Stem Length: 9"   Yes   229,500
WK9010900208WI   ¡¡ ¡¡ Glass Thermometer, Range: 30 / 300 ¡ÆF, Stem Length: 9"   Yes   229,500
WK9011200204WI   ¡¡ ¡¡ Glass Thermometer, Range: 0 / 120 ¡ÆF, Stem Length: 12"   Yes   257,040
WK9011200208WI   ¡¡ ¡¡ Glass Thermometer, Range: 30 / 300 ¡ÆF, Stem Length: 12"   Yes   257,040
