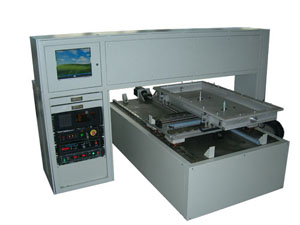

·¹ÀÌÀú Çʸ§ Àý´Ü±â SDF
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

Equipment performance


SDF(SSF)series laser scribing machine: Adopting semiconductor pump laser or solid state laser. the direction of laser point is fixed, the

worktable take with the solar panel, and move with the laser point relatively to finish the scribing work, the special X-Y axis worktable for

scribing, servo-motor for driving, ball screw mandrel and track for transmission. By the proprietary control software for easily edit and

revision of scribing path, adopting dividing-laser  system to finish the laser output of two path synchronously.

Applicable fields


Engraving and lineation of TCO film¡¢a-Si film¡¢Al plating film at solar energy industry.

The main technical parameters

¡¡

Type specification

SDF50B

SDF10D

SSF10B

SSF5D

Laser wavelength

1064nm

532nm

1064nm

532nm

Laser power

50W

10W

10W

5W

Laser repetition frequency

200Hz~50kHz

1kHz~100kHz

Scriber linewidth

100¥ìm

80¥ìm

Scriber speed

200mm/s

400mm/s

Scriber precision

¡¾10¥ìm

¡¾10¥ìm

Work platform

49£§¡¿ 25£§(1250¡¿640mm)

49£§¡¿ 25£§(1250¡¿640mm)

Cooling way

Outside suspension type (integration)
circulation water cooling

Wind cooling

Showroom for samples
