HotSpot Thermocouple Welders

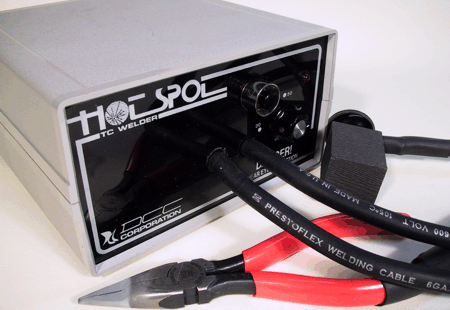

HotSpot Portable Thermocouple Welder
　

The HotSpot Capacitive Discharge Welder is designed to help solve your thermocouple fabrication and attachment problems. The welder generates an electric arc for fusing standard couple elements into freestanding beads and welding them to any thickness base metal. Visual and sonic indicators alert operator when the welder has cycled and is at the user selected power level.  The system is powered directly from the AC line through a step-down transformer, or from a gel type  battery, which provides power for a few hundred welds off-line. The  battery is automatically recharged whenever the unit is connected to AC power.

Using welded thermocouples solves the couple generation and attachment problem in one operation. Merging these steps with the HotSpot generates obvious advantages in the areas of cost, flexibility, accuracy, and the time required for installation.

QUICK ACTION
Give up waiting for ready made thermocouple junctions, and fabricate your own with the Hot Spot welder. It's much faster than gas welding and produces a more reliable contact than mechanical twisting or clamping. The Hot Spot is so small and portable that you can use it right where you want it. And it forms and attaches junctions in one step.

ECONOMICAL
Not only do you save the time of waiting for prefabricated couples, but you reduce costs by forming junctions from standard thermocouple wire. You also save the cost and effort of using clamps, brackets, glue, and other sensor mounting means

EASY-TO-USE
You don't have to be a welder to be a success with the HotSpot. After a little experimenting to zero-in on the best energy settings and positioning techniques for the wire type and size being used, the inexperienced operator will quickly be producing satisfactory welds

FLEXIBLE
Adjustable weld power output matches the varying requirements of the thermocouple materials and wire gauges. Make butt welds, and third party or free standing junctions, all with the same device.
