UV GRID LAMPS AND POWER
SUPPLY
Mercury Grid Lamps are photochemical lamps with tubing bent back and forth
to form several parallel "bars". They are designed for applications
where short wave UV energy is needed. Ideal for curing epoxies, removing
trace amounts of organic contaminants, electronic component cleaning, ozone
generators, erasing Eproms and other scientific and environmental uses.
The advantages of Mercury Grid Lamps are: (1) Concentration of the energy
into the specific area required (these lamps may be rectangular or square);
(2) Strong, even illumination without hot spots; (3) May be held at any
distance from reacting surface with little interference from heat.

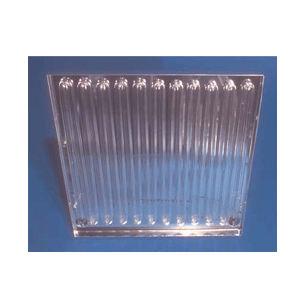

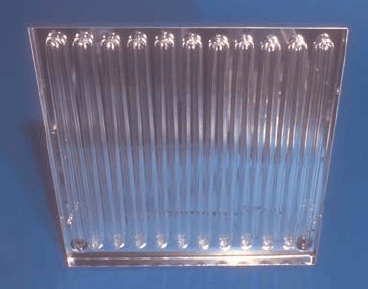

Mercury Grid Lamp is a 10" square, flat grid lamp formed of 9 mm tubing
and mounted in a protective housing with an alzac reflector. The total output
of 254nm UV emitted is approximately 20W. Comes in a 185-579nm radiation
capability. Specially designed Power Supply is required for operation of
lamp. |
APPLICATIONS:
● Curing epoxies
● Electronic component cleaning
● Erasing Eproms
● Other scientific and environmental uses
● Ozone generators
● Removing trace amounts of organic contaminants
| Part Number |
Description |
Units |
| A002-008 |
GRID LAMP 185-579NM |
EACH |
| A002-010 |
GRID LAMP POWER SUPPLY |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
