The kit¡¯s 4¡± wide effective curing area and its use of a 110/60/1

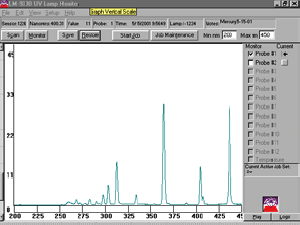

GALLIUM


IRON


MERCURY


METAL HALIDE
UV DEVELOPER¡¯S KIT
The CON-TROL-CURE¢ç UV Developer¡¯s Kit offers the first
benchtop UV system that allows its user to switch UV wavelengths from job to job. The kit¡¯s 4¡± wide effective curing area and its use of a 110/60/1 or 220/50/1 power source makes this system ideal for all laboratory and small production applications. Since many of today¡¯s UV formulations demand specific UV wavelengths for complete and efficient curing, it is essential that a laboratory UV curing system have
the ability to deliver maximum UV energy in all popular wavelengths: mercury, iron, gallium and metal halide. Until now, there has not been an economical UV curing unit available offering the ability to cure using different UV wavelengths.

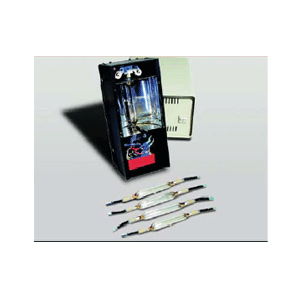

The UV Developer¡¯s Kit includes a universal power supply, a precise focus lamp housing with quick change lamp holders and 4 UV lamps (Mercury, Iron, Gallium and Metal Halide). The universal power supply is designed to drive all of the lamps and to vary the output of each of the lamps from 150W/in to 300W/in. The kit¡¯s 110 or 220V, 50/60Hz power requirement adds to its simplicity and makes it ideal for field testing and demonstrations.

BENEFITS:
¡Ü Unit has adjustable energy output for precise and repeatable results
¡Ü Lightweight system is portable for practical use in the lab or in the field
¡Ü Quick change lampholders simplify lamp installation to deliver desired peak wavelength from project to project

SPECIFICATIONS:

¡Ü Lamp kit contains one of each: Mercury, Iron, Gallium, Metal Halide
¡Ü UV output: 150 to 300W/in (adjustable)
¡Ü Curing width: 4¡±
¡Ü Power requirement: 110 or 220V, 50/60Hz, single phase
¡Ü Lamp housing dimensions: 10.5"L x 5.5"W x 5.5"H
¡Ü Power supply dimensions 14"L x 10"W x 6.5"H
¡Ü Total weight of complete unit: 15 lbs

OPTIONAL EQUIPMENT:

Conveyor: To enhance performance and the repeatability of testing, the UV Developer¡¯s Kit can be supplied with a benchtop conveyor system. The sturdy but lightweight conveyor has a 4¡± wide belt that is speed adjustable from 5-60 FPM.

Conveyor Specifications:

¡Ü Belt speed: 5-60 FPM (adjustable)
¡Ü Belt Type: UV specific-Teflon¢ç-coated over fiberglass

Shuttered Lamp Housing: The standard, non-shuttered lamp housing can be replaced with a shuttered lamp housing for applications where the substrate may stop in front of the lamp.


Part Number Description Units
A012-034 DEVELOPER'S KIT EACH
