A problem which exists for the user of UV curable materials is the degree of cure to which a coating formulation has achieved.

DEPTH OF CURE COMPARATOR™

A problem which exists for the user of UV curable materials is the degree of cure to which a coating formulation has achieved. The CON-TROL-CURE® Depth of Cure Comparator™ provides an easy method to identify the latitude of curability or curing range of the
coating. The simplicity and the low cost of this item will allow for a fast evaluation of the coating or ink as frequently as necessary.

The Depth of Cure Comparator™ is designed to evaluate the parameters of a coating in the actual manufacturing environment. As a production tool, it can help identify what is causing a curing problem, as well as establish the specific curing variables (i.e.
process speed, UV light intensity, applied coating thickness). With these process variables identified on the comparator, the ability to establish repeatable manufacturing methods is then easy.

FEATURES:
● Compares the coatings performance on the actual curing system
● Enables the removal of cured films for additional testing and record keeping
● Can be used as a quality control tool for checking incoming curable material
● Effectively determines the color opacity level
● Effectively determines optimum conveyor speeds

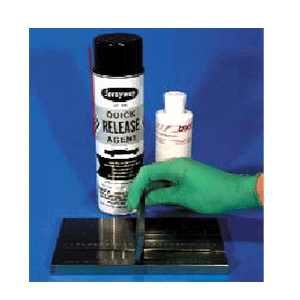

ACCESSORIES SUPPLIED WITH DEPTH OF CURE COMPARATOR™:
● Release Agent: Quick Release N008-018 (prevents adhesion to the Comparator)
● Magnetic End Tap (prevents coating run-off)
● Precision Scraper (levels coating)
● Coating Stripper: Bond Breaker N008-017 (removes cured ink or coatings)

Part Number	Description	Units
N008-001	DEPTH OF CURE COMPARATORTM	EACH

BOND BREAKER

HD Bond Breaker is a strong chemical formulation designed to remove unwanted or incorrectly cured inks, coatings or adhesives from the surface of many different fully cured materials. Excellent at correcting mistakes, cleaning cured or dried ink in pumps, and for cleaning glass and metal. Not intended for vinyl and certain plastic substrates. As it can irritate the skin and eyes, users of this product must wear appropriate hand and eye protection when using HD Bond Breaker. Available in 8 oz or 1 gallon containers.

Part Number	Description	Units
N008-017	HD BOND BREAKER	8 OZ
N008-021	HD BOND BREAKER	GALLON
N008-018	QUICK RELEASE SOLVENT	14 OZ
