It provides a safe, reliable measurement solution for UV-web and other applications.

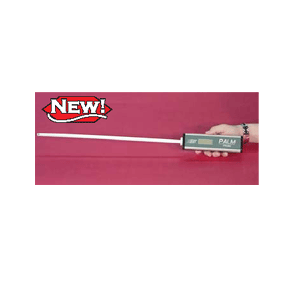

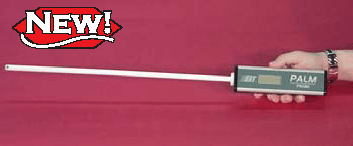

PALM PROBETM RADIOMETERS
The PALM (P)roduction (A)mbient (L)ight (M)easurement ProbeTM UV Radiometer
is a process control instrument designed for measuring UV energy
within inaccessible environments. It provides a safe, reliable measurement
solution for UV-web and other applications.
The PALM ProbeTM has an extremely wide dynamic
range allowing it to measure very low (i.e. fluorescent bulbs) and very
high (i.e. powerful UV curing systems) levels of UV. As the harsh physical
conditions inside a UV curing chamber include extreme temperature variations,
the PALM Probe™ is designed to withstand these conditions as well as protect
the operator and instrument from damage or electrical shock. The light guide
is constructed of steel alloy and coated with a non-conductive ceramic coating
to insulate and protect the user from accidental shock. It is further isolated
from the instrument body by a nonconductive Delrin block.
An input aperture at the tip of the PALM ProbeTM light guide detects all
wavelengths of ultraviolet, visible and infrared radiation. The light is
directed down the light guide to the base of the instrument where a UV filter
passes the UV light of interest to the photodetector. The LCD display toggles
between watts, joules, and seconds during data collection and at the end
of data collection.
ELECTRICAL SPECIFICATIONS:
● UV Range: 100μW/cm2-10W/cm2
● Spectral Response: UV-A 320-390nm, UV-B 280-320nm,
UV-V 395-445nm
● Instrument Body Operating Temperature: 0°C - 70°C
● Light Guide Temperature Resistance: 750°F on a continuous
basis; much higher for measurement length exposures
● Batteries: 2 “AA” alkaline batteries
MECHANICAL SPECIFICATIONS:
● Overall Length: 25.75” (65.4 cm)
● Probe Body Length: 7.5” (19.0 cm)
● Light Guide Length: 18.25” (46.4 cm)
● Weight: 21 oz (596 g)
Part Number
Description
Units
M007-096A
PALM PROBETM UV-A
EACH
M007-096B
PALM PROBETM UV-B
EACH
M007-096V
PALM PROBETM UV-V
EACH
