1/2" NPT threaded connections, Full flow, 90° rotation from off to full flow

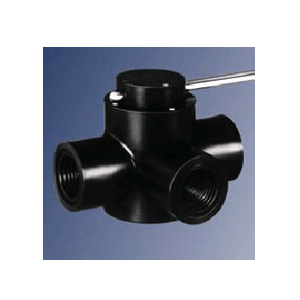

POLYPROPYLENE ELLIPTIC
HAND VALVES
The unique design of the Elliptic Hand Valves offers unmatched suitability
for a broad range of applications in fluid handling systems, especially
where a high degree of resistance to corrosion and contamination is required.
FEATURES:
● 1/2" NPT threaded connections
● Full flow
● 90° rotation from off to full flow
● Dynamic sealing effect
● In-line servicing and cleaning
● Pressure rating: 80 PSI @
73°F water
● Compact and lightweight
● Individually tested
The versatile 4 position/3-Way Elliptic Valve may be used as:
1. 1 inlet to either of 2 outlet
2. 1 inlet to both (2) outlets
3. Either of 2 inlets to 1 outlet
4. Both (2) inlets to 1 outlet
Part Number
Description
Units
J004-037
VALVE 2-WAY
EACH
J004-038
VALVE 3-WAY, 2 POSITION
EACH
J004-039
VALVE 3-WAY, 4 POSITION
EACH
