| The CON-TROL-CURE® Transfer Pump III transports UV/EB inks and coatings at a flow rate of 0-1.8 GPM. |
 |
TRANSFER PUMP III

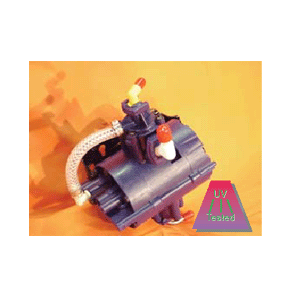

The CON-TROL-CURE® Transfer Pump III transports UV/EB inks and coatings
at a flow rate of 0-1.8 GPM. This air-driven, double diaphragm pump economizes
operation by using cubic inch air consumption rather than cubic ft. Because
of its small size, the pump requires less solvent for thorough cleaning.
Offers self-priming, continuous flow without worry of electrical breakdowns
or stalling. Minimal maintenance with few moving parts, high corrosion and
wear resistance of wetted parts. Easy to clean stainless steel metal components. |
SPECIFICATIONS:
| ● Kit Includes: |
Air Regulator and two 6 ft lengths of
UV grade tubing |
| ● Materials of Construction: |
Polypropylene, EPDM, 304 stainless steel |
| ● Operating Pressure Range: |
10-60 PSI |
| ● Overall Dimensions: |
7"L x 6"W x 4"H |
| ● Standard Fittings: |
3/8" inlet and outlet stainless steel
1/4" air inlet nylon elbow fitting |
| ● Suction lift (wet): |
25" Hg/min |
Transfer Pump III only. A low priced basic version of Transfer
Pump III. So inexpensive, it can be used as a disposable pump! Regulator,
drum/pump hanger, and hoses not included.
Transfer Pump III Repair Kit. The CON-TROL-CURE® Transfer Pump III Repair
Kit contains parts and instructions necessary for the replacement of the
pump diaphragm. This repair kit includes 2 piston/diaphragm assemblies,
valves and O-rings.
IMPORTANT NOTE: Check with ink or coating manufacturer to ensure compatibility
between ink/coating chemistry and this pump's wet components. |
| Part Number |
Description |
Units |
| J004-061 |
TRANSFER PUMP 3 (PUMP ONLY) |
EACH |
| J004-041 |
TRANSFER PUMP 3 KIT |
EACH |
| J004-119 |
TRANSFER PUMP 3 REPAIR KIT EPDM |
EACH |
| |
|
|
 | |
 |
|
 |
|
