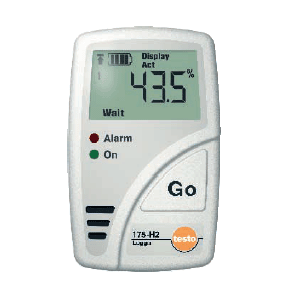

testo 175-H2 Part no. 0563 1758
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : Testo
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
The compact humidity/temperature logger with display.
Compact data logger for humidity and temperature

Ambient air logging with immediate display of limits exceeded e.g. during storage, production


Data analysis on notebook/PC with user-friendly Windows¢ç software. Data is shown in table or line graph form
The compact humidity/temperature logger
with display. It provides you with a fast onsite overview of current readings, the last
values saved, max and min values and the number of times limits were exceeded.

The testo 575 printer provides fast proof of adherence to predefined ambient storage or production conditions. All of the values collected by the testo 580 data collector are transmitted to your PC for analysis.

¡Ü Large display, can also be read at a distance
¡Ü Fast documentation with infrared
printer, 6 lines/s
¡Ü Collect data using testo 580 and
download to your PC/notebook for
analysis

testo 175-H2
Internal %RH, ¡ÆC
testo 175-H2, humidity/temperature logger, 2 channels, with internal sensors, wall holder and
calibration protocol

Part no.       0563 1758   542,000 ¿ø

Ordering data for Accessories Part no.
testo 575 fast printer, incl. 1 roll of thermal paper and batteries
Infrared thermal line printer with graph function
0554 1775
780,000 ¿ø
Spare thermal paper for printer (6 rolls) 0554 0569
38,000 ¿ø
Spare thermal paper for printer (6 rolls)
Measurement data documentation legible for up to 10 years
0554 0568
43,000 ¿ø
Label thermal paper (Testo patent) for testo 575 printer (6 rolls), can be applied directly 0554 0561
72,000 ¿ø
testo 580 data collector including readout holders for testo 175/177 data loggers 0554 1778
430,000 ¿ø
ComSoft 3 - Basic Set for testo 175, Basic software With diagram and table function, interface incl. desk-top holder, PC connection cable 0554 1759
163,000 ¿ø
ComSoft 3 - Professional with data management Incl. database, analysis and graphics function, data analysis, trend curve (without interface) 0554 0830
617,000 ¿ø
¡ØComSoft 3 - For requirements in accordance with CFR 21 Part 11
Incl. database, analysis and graphics function, data analysis, trend curve (without interface)
0554 0821
2,805,000 ¿ø
Interface for testo 175/177 incl. desk-top holders, PC connection cable(please also order for ComSoft 3 - Professional) 0554 1757
149,000 ¿ø
Lock for wall holder for testo 175/177 data loggers 0554 1755
18,000 ¿ø
Battery, 3.6 V/0.8 Ah 1/2 AA 0515 0175
40,000 ¿ø
Transport case for up to 5 testo 175 data loggers, testo 575 printer, testo 580 data collector and accessories 0516 1750
120,000 ¿ø
ISO calibration certificate/Temperature
Temperature data logger; calibration points -18¡ÆC; 0¡ÆC; +60¡ÆC per chan./instr.
0520 0151
230,000 ¿ø
ISO calibration certificate/Humidity
Humidity data logger; calibration points 11.3%RH and 75.3%RH at +25¡ÆC; per channel/instrument
0520 0076
268,000 ¿ø
DKD calibration certificate/Humidity
Humidity data logger; cal. points 11.3%RH and 75.3%RH at +25¡ÆC; per channel/instrument
0520 0246
689,000 ¿ø
Recommended kit:
testo 175-H2, Starter Set
testo 175-H2,
humidity/ temperature logger, 2 channels, with internal sensors, wall holder and calibration protocol

Lock for wall holder for testo 175/177 data loggers

ComSoft 3 - Basic Set testo 175, Basic software incl. interface, desk-top holder, PC connection cable

Technical data
Chann. intern 2
Probe type Testo humid. sensor, cap.NTC
Meas. range 0... +100 %RH
20... +70 ¡ÆC
Accuracy
¡¾ 1 digit
¡¾3 %RH (0... +100 %RH)
¡¾0.5 ¡ÆC (-20... +70 ¡ÆC)
Resolution 0.1 %RH (0... +100 %RH)
0.1 ¡ÆC (-20... +70 ¡ÆC)

Memory 16000
Oper. temp. -20... +70 ¡ÆC
Storage temp.
Battery type
Weight
Dimensions
Warranty
Battery life: 2.5 years at a measuring cycle of 15
min (-10 to +50¡ÆC)
Measuring cycle: 10 s to 24 h
Software: Microsoft Windows 95b / 98 / ME / NT4-Sp4 / 2000 / XP
