AMiR 7841

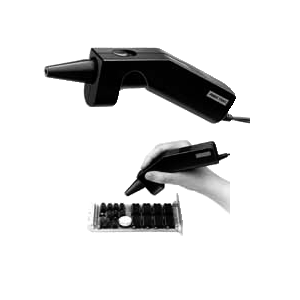

Infrared Temperature Measuring Finger Type
Technical
Features: ●
Low cost infrared sensor for connection to handheld instruments. ●
Integrated current supply via 9V battery in handle including
on/off switch and automatic 10min cutoff. ●
Suitable for control measurements of surface temperatures
in many fields of industry and craft. ●
Due to the compact design and easy operation it is ideally
suitable for electricity and electronics to identify hot spots on PCBs,
contacts etc.
Technical Data:
Measuring range:
-18 to 260°C
Resolution:
1K
Accuracy:
±2% of meas. value or ±2K
Reproducibility:
1% of meas. value or ±1K
Nominal temperature:
23°C ±5°C
Response time:
1s
Spectral sensitivity:
8 to 14mm
Emissivity:
0.95 fixed setting
Power supply:
9 V alkaline-manganese battery (IEC 6 LR 61) operating
life time 50hrs (with 10min cutoff)
Ambient temperature:
0 to 65°C permissible
Relative humidity:
10 to 70%, non-condensing at 30°C
Dimensions/weight:
L 180 x W 30 x H 50mm, 180g
Types:
MR784110
With linearised voltage output 1mV/°C,
lab connector for multimeter connection
MR784120
With thermocouple characteristic curve NiCr-Ni (K),
miniature flat connector
FIA260MV
With ALMEMO® flat connector for direct connection
to ALMEMO® handheld devices

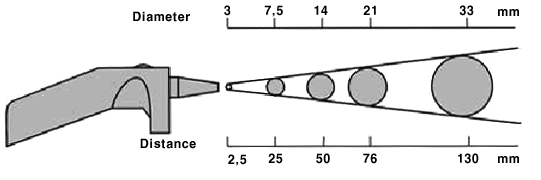

Measuring Field Diagram:
