| Since the gas is supplied by means of free convection, this is especially suitable for climatology measurements |

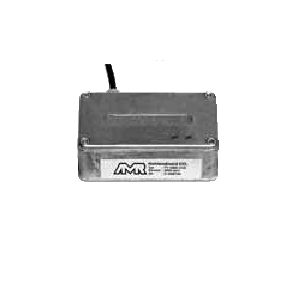

FYA600CO2
Carbon Dioxide Probe Type
● Since the gas is supplied
by means of free convection, this is especially suitable for climatology
measurements.
● Various measuring
ranges up to 25%
☞ Operation
with the device in SLEEP mode is not possible! When operating more than
one CO2 probe on a single ALMEMO® device, these CO2 probes will need their
own external power supply ! On request we can offer a wide variety of power
supply options to suit your particularmeasuring setup.
| Type: |
| FYA600CO2 |
Carbon dioxide sensor
including connecting cable 1.5m long
for CO2 measurements in air (Please specify measuring range !) |
|
| Technical Data: |
| Gas: |
CO₂ |
| Measuring principle: |
IR optics |
| Measuring ranges: |
nominal (% CO2): 0 … 0.5%,
0 … 2.5%, 0 … 10%, 0 … 25% |
| Accuracy: |
±2% of fin. val. |
| Reproducibility: |
±1% of final value |
| Resolution: |
(depending on measuring range)
50 … 100ppm at 5000ppm
<200ppm at 2.5% |
| Voltage output: |
0 … 2V for the selected
measuring range |
| Current output: |
referred to GND
max. burden (load resist.): 400 |
| Power supply: |
6.5 to 12VDC
from the ALMEMO® device
Operation with mains supply unit
recommended ! |
| Current consumpt. |
eff. 50mA/ max. 70mA |
| Settling time t90: |
< 60s |
| Temperature coefficient: |
typical -0.4% signal/K |
| Temperature range: |
5 to +40°C |
| Relative humidity: |
0 to 95% |
| Dimensions: |
W 96mm x H 36mm x D 64mm |
| Weight: |
241g |
| Connecting cable: |
1.5m long, ALMEMO® connector |
|
| |
|
|
 | |
 |
|
 |
|
