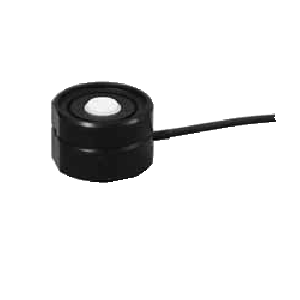

FLA603VLx Lux Probe Head Type
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
High quality probe head for determining the density of light in lighting engineering or in sunlight

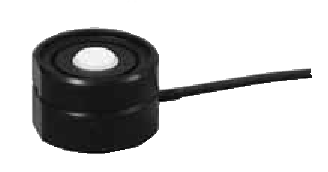

FLA603VLx Lux Probe Head Type


¡Ü High quality probe head for determining the density of light in lighting engineering or in sunlight and any place where DIN standards recommend the use of a class B luxmeter.
¡Ü Spectral adaptation approximated to the photometric
valuation function V(¥ë) for photopic vision, class B, better
than 6%.
¡Ü Different measuring channels with different sensitivity.


Technical Data:
Measuring range: FLA603VL2: 0.05 lx to 12500 lx
FLA603VL4: 1 lx to 250000 lx
Smallest resolution: FLA603VL2: 0.01 lx
FLA603VL4: 1 lx
Sensitivity: approx. 20pA/lx
Spectral adaptation: approxim. to photometric valuat. function V(¥ë) for photopic vision, class B, better than 6%
Max. cos deviation: class B, < 3%
Cos diffusor: diameter 7mm
Nominal temperature: 24¡ÆC ¡¾2K
Operat./storage temperature: 0 to 60¡ÆC/-10 to +80¡ÆC
Humidity range: 10 to 90% (non-condensing)
Dimensions: ¨ª 37mm, height 20mm

Type:
Lux probe head, DIN quality class B with ALMEMO¢ç connecting cable 2m long, incl. factory calibration certificate with calibration in lx
FLA603VL2 for indoor lighting (3 measuring channels)
FLA603VL4 for ambient light (2 measuring channels)
