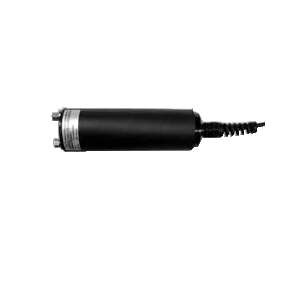

Water detection probe for instant detection of uncombined water.
FHA936WDWater
Detection Probe Type
● Water detection probe
for instant detection of uncombined
water.
● Particularly
suitable for construction applications, especially in locations that are
difficult to check visually, e.g. at sealing
joints, under cement floors etc.
● Indirect moisture
measurement according to the principle of
conductivity.
● Probe with
two collets for easy electrode replacements.
● Electrodes
in three different designs for matching any
required application.
Types:
FHA936WD
Water detection probe
Technical Data:
Measuring method:
detection of water
Meas. values:
<10% no water
>10% water
Housing:
plastic handle
40mm Ø, 130mm long
Electrodes:
stainless steel
Electrode types:
uninsulated with rounded tip:
200mm long, 3mm Ø
uninsulated with sharp-edged tip:
50mm long, 3mm Ø
spring steel strap:
200mm long, 6mm wide, 0.5mm high
Weight:
260g
Nominal temperature:
23°C ±2°C
Operating temperature:
0 to +60°C
Storage temperature:
-20 to +80°C
Signal output:
ALMEMO® (approx. 0 to 2V)
Power supply:
7.5 to 15V
Current consumption
max. 10mA
