FEATURES
● Machinery vibration analysis and dyanmic balancing, single and two-plane
● On-the-spot trouble-shooting of vibration problems
● Pinpoint problems with manually-tuned frequency analysis
● Rugged, solid state construction
● Strobe for balancing and phase measurements
● High intensity strobe light
APPLICATIONS
● Dynamic balancing
● Fans, motors, pumps, spindles and grinding wheels
● Rotating machinery vibration analysis
● Balancing machine instrumentation
DEscRIPTION

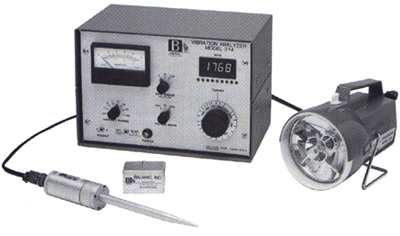

Balmac's Model 214 Vibration Analyzer/Balancer is an economical instrument for analyzing vibration of rotating machinery as well as balancing the machines.
The Model 214 features a large, easy to read analog amplitude meter, a digital frequency meter and a high intensity strobe light. It features a tunable filter that covers machinery speeds of 150 to 200,000 cycles per minute (RPM). All circuitry is housed in a metal enclosure that is rain- and dust-proof. It features a silver anodized faceplate and large, easy to read meters. |
|
| SPECIFICATIONS |
| Amplitude Ranges |
0 to 100 mils or inches/second
Eight overlapping ranges of :
0.03, 0.1, 0.3, 1, 3, 10, 30, 100 |
| Sensitivity |
0.001 mil or inch/second |
| Filter Range |
150 to 200,000 CPM
(2.5 to 333 Hz) |
| Filter Bandwidth |
5% |
| Vibration Inputs |
Two (selectable) |
| Strobe Light |
One flash per cycle
to 4800 CPM
Submultiple to 200,000 CPM |
| Frequency Meter |
Three overlapping ranges of :
150 to 2,000 CPM
1500 to 20,000 CPM
15,000 to 200,000 CPM |
| Enclosure |
Rain-tight, dust-tight |
| Power Requirement |
105 to 125 volts AC, 50/60 Hz |
| Weight |
8.5 lbs (3.85 kg) |
| Size |
8 1/4" × 12 1/2" × 7 1/2"
(21 × 32 × 19 cm) |
| Accessories |
Model 297 Strobe Light, Model 158 Pickup, Magnetic Pickup Base and Cables | |
| VIBRATION ANALYZERS (AC Powered) (Shop Balancer) |
| MODEL 214 VIBRATION ANALYZER / BALANCER KIT-1 |
7,720,000원 |
| |
Consisits of: |
214 Analyzer / Balancer |
|
| |
|
158 Vibration Pickup |
|
| |
|
044-15 Pickup Cable (15') |
|
| |
|
055 Magnetic Pickup Base |
|
| |
|
297 Strobe Light |
|
| |
|
Manual and Calibration Certificate |
|
| MODEL 214 VIBRATION ANALYZER / BALANCER KIT-2 (Kit-2 has 2-Pickup Sets) |
8,420,000원 |
| VIBRATION ANALYZER & VIBRATION METER ACCESSORIES |
| 051 |
PROBE (7") (for 158 and 160 Pickups) |
60,000원 |
| 055 |
MAGNETIC PICKUP BASE (for 158 and 160 Pickups) |
190,000원 |
| 056 |
VISE-GRIP PICKUP BASE (for 158 and 160 Pickups) |
190,000원 |
| 057 |
FISH-TAIL SHAFT STICK BASE (for 159 and 160 Pickups) |
190,000원 |
| 158 |
VIBRATION PICKUP (Velocity Type) |
780,000원 |
| 160 |
VIBRATION PICKUP (Integrated Electronic Velocity used for Low-Frequency) |
780,000원 |
| 041-15 |
VIBRATION PICKUP CABLE (15') (for 158 Pickup) |
190,000원 |
| 041-25 |
VIBRATION PICKUP CABLE (25') (for 158 Pickup) |
220,000원 |
| 041-xx |
PICKUP CABLE (for 158 Pickup) xx = Length @ $1.30 per foot |
150,000원 |
| 048-15 |
VIBRATION PICKUP CABLE (15') (for 160 Pickup) |
190,000원 |
| 048-25 |
VIBRATION PICKUP CABLE (25') (for 160 Pickup) |
220,000원 |
| 048-xx |
PICKUP CABLE (for 160 Pickup) xx = Length @ $1.30 per foot |
150,000원 |
| 045-15 |
STROBE CABLE (15') (for 297 Strobe for the Model 214) |
190,000원 |
| 044-15 |
STROBE CABLE (15') (for 295 Strobe for the Model 216-D) |
190,000원 |
| 036 |
SHIPPING CASE (for Model 216-D) |
780,000원 |
| 037 |
CARRYING CASE (for Model 214 and 216-D) |
220,000원 |
| 21-000 |
AC POWER LINE CORD (for Model 216-D) |
70,000원 |
| 20-600 |
DC POWER CORD (for Model 216-D) |
40,000원 |
| 295 |
STROBE LIGHT (5-pin connector) (for the Model 216-D) |
1,930,000원 |
| 297 |
STROBE LIGHT (6-pin connector) (for the Model 214) |
1,930,000원 |
| 8106 |
VIBRATION RECORD SHEETS |
10,000원 |
| 8107 |
VIBRATION MAINTENANCE RECORD SHEETS |
10,000원 |
| GRAPH |
POLAR-GRAPH PAPER 25-SHEETS (Balancing Record Work Sheet) |
7,000원 |
| METRIC |
METRIC UNIT CALIBRATION & NOMENCLATURE |
031-777-1588 |
| BAL-CP |
CALCULATOR FOR BALANCING (HP-48) |
670,000원 | | |
|
|
 | |
 |
|
 |
|
