Features
● Measures Displacement, Velocity & Acceleration
● Standard 100 mV/g Accelerometer
● Portable, battery-operated
● Large LCD Display
● Digital, solid-state circuitry
● High-impact polystyrene case
● Pushbutton operation
● Optional headphones
APPLICATIONS
● Fans, Motors, Pumps and Compressors
● Condition Monitoring
● Vibration Trending
● Vibration Severity Analysis
DEscRIPTION

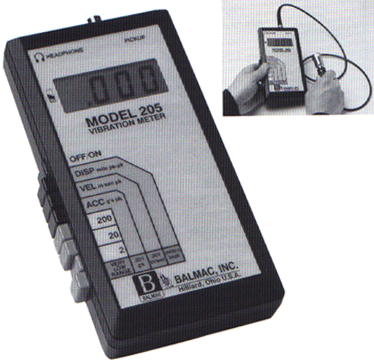

The Model 205 is a protable, hand-held digital vibration
meter that measures machinery vibration. It is used to
measure vibration on all types of rotating machinery including fans, motors, pumps, compressors as well as many other types of industrial machines.
The Model 205 features a standard 100mV/g accelerometer
that allows operators to read measurements in displaceme
nt (mils), velocity (ips) and acceleration (g's)/ The rugged, high-impact polystyrene case is light weight and easy to carry. Color-coded pushbuttons select displacement, velocity and acceleration measurements. It operates on 4 AA size alkaline batteries with a self diagnostic "low battery" condition signal. The large 3/4" character, digital display is easy to read.
The Model 205 has an audio output jack and optional headphones(electronic stethoscope) to allow an operator to listen to the vibration signal to aid in determining the source of vibration.
BENEFITS OF VIBRATION MONITORING
Vibration monitoring is a simple, effective maintenance tool that can help rotating equipment manufactures, service contractors and maintenance departments save costs and increase profitability.
|
|
Model 205 features large LCD display, color-coded
pushbutton operation and light-weight portability. |
Studies show most rotating machinery failures are preceded
by a rise in vibration levels. Excessive vibration results in bad bearings, cracks in pipes and foundations, broken mounting bolts, misalignment and unbalance. Even more serious, an entire HVAC system, production line, or pumping
operation could be shut down due to individual piece of equipment failing.
Periodically measuring and recording vibration data in rotating machinery reveals trends and increased vibration levels. Analyzing this data assists operators to schedule maintenance. Minor, less costly problems are corrected before they become expensive faliures.
Vibration monitoring is useful in all types of industrial applications including manufacturing, commercial buildings,
processing plants, pumping operations, automotive assembly, power generation, engineering and marine operations. |
| SPECIFIVATIONS |
| AMPLITUDE RANGE: English: |
0.001 to 199 mils pk-pk (peak-to-peak) Displacement
0.001 to 199 im/sec pk (peak) Velocity
0.001 to 199 g's pk (peak) Acceleration |
| Note: |
Very Low Range in units of 0.001 g's, 0.001 in/sec, & micro-inches |
| Metric: (250M) |
Displacement micrometers (μm) peak-to-peak
Velocity millimeters-per-second (mm/sec) peak |
| RANGE:Four selectable ranges with over-range indication for each range |
| MODEL |
205 English |
205M Metric |
| High Range |
200 = 0 to 199.9 |
2000 = 0 to 1999 |
| Medium Range |
20 = 0 to 19.99 |
200 = 0 to 99 |
| Low Range |
2 = 0 to 1.999 |
20 = 0 to 19 |
| Very Low Range |
0 to 199.9 |
0 to 199.9 |
| Note: |
Very Low Range in units of 0.001 g's, 0.001 in/sec, & micro-inchs |
| SENSITIVITY : Displacement: |
0.0000001 inch (0.001 mil) (1 micro-inch) (0.0254 μm) |
| Velocity: |
0.001 inch/sec (0.02 mm/sec) |
| Acceleration: |
0.001 G |
| ACCURACY: |
5% FS (+/- 2.5%) instrument [see performance specificiations on pickup] |
| FREQUENCY RANGE: |
20 to +300,000 rpm (0.4 to +5,000 Hz) |
| DISPLAY: |
2 1/2 digit, numeric LCD (with Low Battery indicator); 3/4" char. |
| INPUT: |
Industrial ICP Accelerometer with 100 mV/g Sensitivity |
| OUTPUT: |
Headphones or Signal Output with 1/8" Mono jack |
| CONTROLS: |
Color-coded Function pushbuttons for all measurements |
| POWER: |
Four Size AA standard alkaline batteries 1.5 Volts |
| TEMPERATURE: |
32˚ to 122˚F (0˚ to 50˚C) |
| ENVIRONMENTAL: |
Relative humidity 0-95% non-condensing |
| DIMENSIONS: Model 205: |
7.67" H × 3.97" W × 1.73" D (19.5 × 10.1× 4.4 cm) |
| Carrying Case: |
13.5" H × 10.5" W × 4.5" D (34.3 × 26.7 × 11.4 cm) |
| WEIGHT: Unit & accessories: |
5 lbs (2.3kg) |
| Unit & pickup: |
<2 lbs (<1 kg) | ———————————————————————————————
| Pickup Specifications |
|
|
| |
| SENSITIVITY (+/-20%): |
100 mV/g |
| FREQUENCY RANGE (+/-10%): |
26 to +300,000 rpm (0.4 to +5,000Hz) |
| SHOCK LIMIT: |
5000 g pk |
| TEMPERATURE RANGE: |
-65˚ to +250˚F (-54˚ to + 121˚C) |
| CONNECTOR TYPE: |
MIL-C 5015 2-Pin Connector |
| CONNECTOR LOCATION: |
Top |
| CONNECTIONS: |
Pin A = Power Signal |
| |
Pin B = Sensor Ground |
| MOUNTING: |
1/4-28 UNF Thread Mounting Hole |
| MOUNTING TORQUE: |
2 - 5 ft/lb (2,7 to 6,8 N-m) |
| CASE MATERIAL: |
SS (Stainless Steel) |
| SEALING: |
Welded Hermetic |
| WEIGHT: |
2.8 ounces (79 grams) |
| SIZE: |
7/8 Hex × 1.9 in (22,2 × 48,3 mm) (Hex × Height) | | |
STANDARD PACKAGE
1. Model 205 Vibration Meter
2. Model 601 Accelerometer Vibration Pickup
3. Model 059-5' Straight Pickup Cable
4. Model 052 Magnetic Pickup Base
5. Manual and Calibration Certificate (NIST Traceable)
6. Model 032A Carrying Case |
|
OPTIONAL ACCESSORIES
7. Model 033 Headphones (1/8" Mono plug)
8. Model 059-5R' Retractile Coil-Cord
9. 8106 Vibration Record Sheets
10. 8107 Vibration Pickup Cable
Two-Year Warranty: for complete warranty information see Balmac catalog. |
| VIBRATION METER |
| MODEL 205 DIGITAL VIBRATION METER KIT |
2,450,000원 |
| |
Consisits of: |
205 Meter (with Batteries AA 1.5 Volt [4]) (205M = Metric unit) |
|
| |
|
601 Vibration Pick up 100 mV/g |
|
| |
|
059-5S Pickup Cable (5' Straight Cord) |
|
| |
|
052 Magnetic Pickup Base |
|
| |
|
032A Carrying Case |
|
| |
|
Manual and Calibration Certificate |
|
| VIBRATION METER ACCESSORIES |
| 033 |
HEADPHONES (for 200, 205, or 211 Meters) |
130,000원 |
| 051 |
PROBE (7")(with 1/4-20 stud for 158 Pickup)) |
60000원 |
| 052 |
MAGNETIC PICKUP BASE (with 1/4-28 stud for 601 Pickup) |
190,000원 |
| 055 |
MAGNETIC PICKUP BASE (for 158 and 160 Pickups) |
190,000원 |
| 056 |
VISE-GRIP PICKUP BASE (for 158 and 160 Pickups) |
190,000원 |
| 057 |
FISH-TAIL SHAFT STICK BASE (for 158 and 160 Pickups) |
190,000원 |
| 158 |
VIBRATION PICKUP (Velocity Type) |
780,000원 |
| 160 |
VIBRATION PICKUP (Integrated Electronic Velocity used for Low-Frequency) |
780,000원 |
| 601 |
VIBRATION PICKUP (100 mV/g Type) |
780,000원 |
| 043-xxS |
PICKUP CABLE (Straight)(200 & 211 Meters) xx = Length @ $1.30 per foot |
150,000원 |
| 043-6R |
PICKUP CABLE (6' Retractile Cord) (for 200 & 211 Meters) |
190,000원 |
| 043-6S |
PICKUP CABLE (6' Straight Cord) (for 200 & 211 Meters) |
190,000원 |
| 048-6S |
PICKUP CABLE (6' Straight Cord) (for 160 Pickup used with 200LF Meter) |
190,000원 |
| 059-5S |
PICKUP CABLE (5' Straight Cord) (for 205 Meters) |
190,000원 |
| 8106 |
VIBRATION RECORD SHEETS |
10,000원 |
| 8107 |
VIBRATION MAINTENANCE RECORD SHEETS |
10,000원 | | | |
|
|
 | |
 |
|
 |
|
