route mode condition monitoring data collector including software

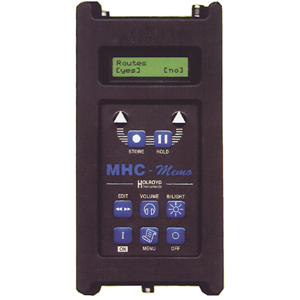

MHC-Memo Pro™
route mode condition monitoring data collector including software

  ● hierarchical point names
   (site,area,machine,point)

  ● multiple routes(upto 6 max)

  ● Upto 435 points per route

● 0.25 rpm very slow speed
measurements

● manual data entry (pressure, temp etc)
● data time & date tagged

● 2340 point auto logs

● 15 spectrum files

● real time clock

MHC-Memo Pro kit

includes

Instrument
Software CD
Standard sensor
Heavy duty carry case
"Ear defender" headphones
25 monitoring pads
2 sets of rechargeable NiMH
230V UK battery charger
Cables

Instrument

Measurements

Route capacity
Points per route
Auto logs
Spectra
Data storage
Display
Keypad
Power save
Audio out
Comms
Op. Temp
Battery type
Battery life
(backlight off)

Size
Weight
Protection

Standard : Distess, dB Level.
Super Slo : Peak, Intensity,
Extent, dB Level.
Manual entry : -99999 to 999999
6 max
435
2340 data sets
15 max
Non volatile
2 × 16 backlit LCD alphanumeric
Sealed membrane
After 8 mins
Hi/Lo ranges
RS-232 supplied with data cable
0 - 50 deg C
2 × PP3 / MN1604 (9v or equivalent)
8hrs (NiCd/NiMH)
34hrs (alkaline)
80hrs (LiMn)
115(w) × 220(h) × 52(d)mm
800g (approx)
Rubber surround

Standard Sensor (other variants available just ask)

Sensing element
Attachment
Size
Weight
Cable
Op temp

Piezoelectric resonant @ ~100kHz
Magnetic front face
60(I) × 32(O/D)mm
250g (inc cable)
1m TNC, 50 ohm coax
0 - 70 deg C

all specifications subject to change without notice
Distress® and Extent® are registered trademarks of
Holroud Instruments Ltd

The intermal battery for the real time clock normally lasts for 5+ years.
This should only be replaced by the manufacturer.

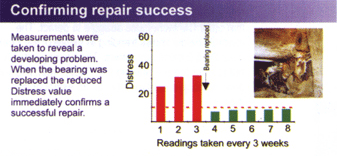

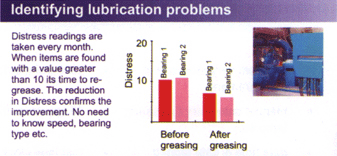

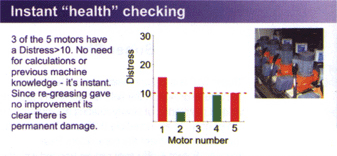

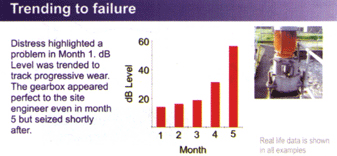

Typical uses

The MHC (Machine Health Checker) range of hand held instruments are designed to be affordable, simple to use, fast and effective condition monitoring tools.

The MHC Memo Pro is the logical upgrade to the MHC - Memo. It comes with brand new software for both analysis of spectra and trending of the measured points.

Why would I choose an MHC - Memo Pro?

·Stores data for up to 6 routes @ 435 points/route.

·Hierachical database (Site,Area,Machine & Point).

·Trending down to 0.25 RPM now available.

·Links to picture files within software.

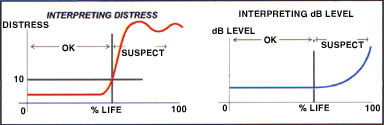

·Distress* & dB level displays.

·Spectra can be stored.

·Can be left to auto log.

·Includes PC software which runs under windows 95,98,ME,NT,2000 and XP.

· Auto trends plots.

· Exception reports.

· Missed Point reports.

· User notes

· Route creation

· Spectra interpretation from AE Lab (also provided).

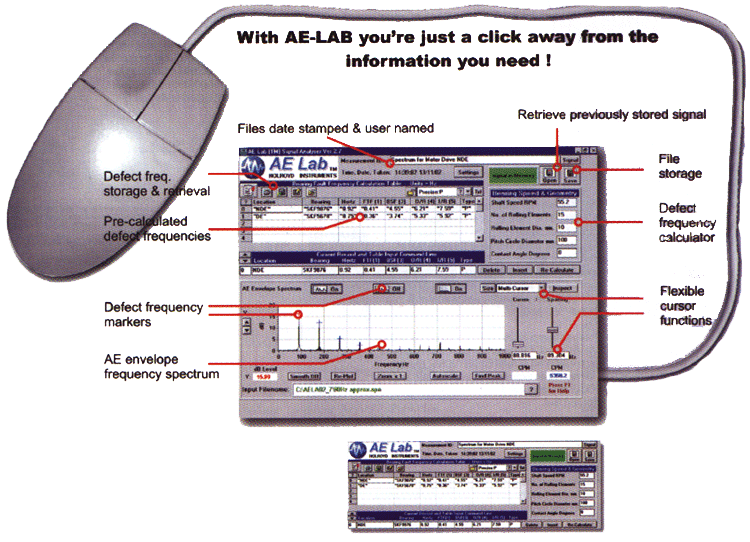

AE-LAB™
	frequency diagnosis software

   ● dedicated frequency
     analysis to 1kHz for AE
     envelope signals
   ● cleaner spectra

● integrated bearing defect
calculator & worksheet

● harmonic cursor modes

● works with MHC-Memo pro
to capture up to 15 spectra
in the field
● user notes
