| Swinging
probe
NEW:
Shows statistics
|

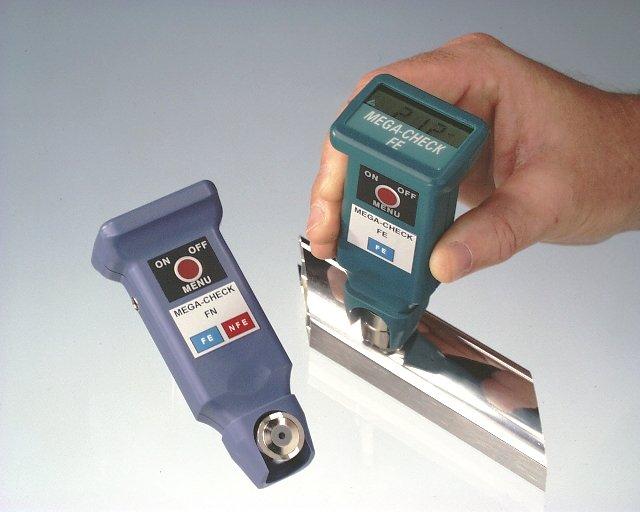

The world's first pocket-size Coating Thickness
Meters with a swinging probe.
NEW: Simply
and easy to operate. With only one key you can scroll through the whole
operation menu.
NEW: Now
display of statistic parameters NO. - MIN - MAX - MEAN and STD.DEV.!
MEGA-CHECK FE / FE-S measure according
to the magnetic induction technique non-conductive coatings (paint, varnish,
plastics, rubber, ceramics) and galvanized films on iron and steel.
MEGA-CHECK FN measures with a
twin-function probe according to the magnetic induction and eddy current
technique. Measurements can be performed: On iron and steel all non-conductive
coatings (paint, varnish, plastics, rubber, ceramics) and galvanized films.
On non-ferrous metals (aluminium, bronze, brass, copper, non-magnetic
steel) non conductive coatings (paint, varnish, plastics, anodizing on aluminium).
Features and Technical Data:
| Function: |
MEGA-CHECK FE
|
MEGA-CHECK FE-S
|
MEGA-CHECK FN
|
| Measurement of paint, varnish, plastics and
galvanizing on iron and steel |
X
|
X
|
X
|
| Measurement of insulating coatings (paint,
varnish, plastics, anodizing) on non-ferrous metals |
-
|
-
|
X
|
| Measuring Range |
FE 0 - 5000 탆
|
FE 0 - 5000 탆
|
FE 0 - 5000 탆
NFE 0 - 2000 탆
|
Resolution:
< 100 탆 : 0,1 탆
> 100 탆 :
1,0 탆
> 1000 탆 :
0,01 mm |
X
|
X
|
X
|
Accuracy:
< 100 탆:
?1 탆
100-1000 탆:
?1%
1000-2000 탆:
?3%
> 2000 탆:
?5% |
X
|
X
|
X
|
| Display: LCD 3 - digits |
X
|
X
|
X
|
| Power Supply: Hydrid battery |
X
|
X
|
X
|
| Two-point calibration |
X
|
X
|
X
|
| Automatic switch off |
X
|
X
|
X
|
| Conversion 탆
- mils |
X
|
X
|
X
|
| Data Logger |
-
|
100 readings
|
100 readings
|
| Interface RS 232 |
-
|
X
|
X
|
| Size |
108 x 48 x 38 mm
|
108 x 48 x 38 mm
|
108 x 48 x 38 mm
|
| Weight |
100 g
|
100 g
|
100 g
|
| Optionals: |
|
| ?/td>
| Standard
Paper Printer DUO-PRINT |
| ?/td>
| Data transmission program TRANSFER |
| ?/td>
| Data evaluation program STAT-6 |
