QS139340 Sound Level Meter
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:QS139340
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

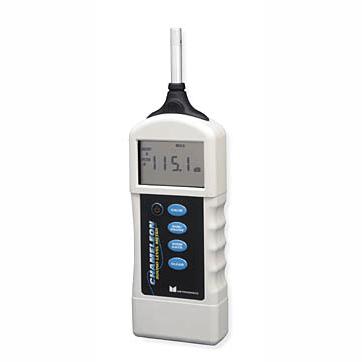

The Chameleon is a single instrument that adapts to the needs of both novice and advanced users
The Chameleon is a single instrument that adapts to the needs of both novice and advanced users. Every Chameleon comes standard with Feature Pack 1, providing the most basic functions of a sound level meter. Additional Feature Packs may be purchased separately to change the Chameleon¡¯s functionality.

Operational in 5 easy steps in 5 minutes or less

  1. Turn ON — Press the ON/OFF button
  2. Calibrate — Press the CALIB button, insert the microphone into the calibrator, turn the calibrator on, let the displayed reading stabilize and press the CALIB button a second time. Remove the calibrator.
  3. Collect Data — Press the RUN/PAUSE button to begin storing data. Press the RUN/PAUSE button a second time to stop storing data.
  4. View Readings — Press the VIEW DATA button repeatedly to scroll through measurement data.
  5. Clear Memory — Press the CLEAR button. CLR appears on the display. Press the CLEAR button a second time and the memory is cleared.

Pack 2 Measurement Data
  • SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time

Pack 3
  • SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time • Amplitude Distribution

Pack 4
  • SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time • Time History

Set-up Options - Packs 2, 3 & 4
  • Fast, Slow or Impulse
  • A or C Weighting
  • Calibration Level
  • 3, 4 or 5 dB doubling


CAT NO. MODEL DEscRIPTION AVAIL PRICE
QS139340   SLM1-MK   SOUND LEVEL MTR KIT W/CAL CASE, WIND SCREEN   Yes   1,890,000
QS139341   PACK 2   OPTIONAL SOFTWARE UPGRADE W/INTERFACE CABLE FOR Chameleon Sound Level Meter   Yes   613,440



QS139342   PACK 3   OPTIONAL SOFTWARE UPGRADE W/INTERFACE DATALOGGING FOR Chameleon Sound Level Meter   Yes   840,240



QS1393421   PACK 4   OPTIONAL SOFTWARE UPGRADE W/INTERFACE TIME HISTORY DATLOG FOR Chameleon Sound Level Meter   Yes   840,240



QS139343   2135-2030-04   OPTIONAL WINDOWS SOFTWARE FOR Chameleon Sound Level Meter   Yes   252,720
