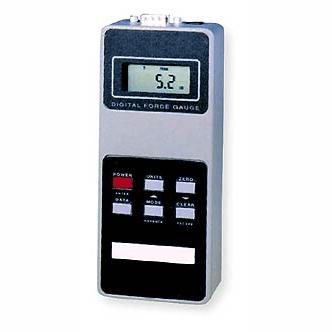

MK21171 0.25 x 0.0001 lb Digital Force Gauge
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:MK21171
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
GCL - Gauge Control Language for full control of all functions.RS-232, Mitutoyo and analog outputs
Features
  • RS-232, Mitutoyo and analog outputs
  • GCL - Gauge Control Language for full control of all functions
  • Programmable analog and digital filters
  • General purpose I/O for external device control
  • Averaging mode for obtaining average force readings over time
  • Programmable initial status of units and mode of operation
  • Permanent configuration memory
  • Automatic timed output on RS-232
  • Dual set points with outputs
  • Automatic peak memory
  • Push-button calibration
  • Battery or AC operation

SPECIFICATIONS

Accuracy

¡¾0.2% of full scale ¡¾1 digit
Display rate 2.5-10/sec. 65/sec in peak mode
Battery life 8 -10 hours of continuous use
RS-232 Fully configurable up to 9600 baud.
Includes GCL - Gauge Control Language
Set point outputs Three open collector lines (utilizing Mitutoyo lines)
Sensor deflection 0.010 [0.25 mm] maximum deflection at full load
Weight (gauge only) 0.95 lb [0.4 kg]
Analog output ¡¾1 VDC ¡¾0.25% of full scale at capacity. Positive for compression, negative for tension
Sampling rate 65 readings per second
Display 4fi-digit LCD 0.3" [7.6 mm] high. Indicators for low battery, units and mode of operation
Power AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via "LO BAT" indicator and then will shut off the gauge
Mitutoyo output Serial BCD suitable for all Mitutoyo SPC-compatible devices.
General purpose I/O Three open collector outputs and one input (utilizing Mitutoyo lines)
Safe overload 150% of full range. Display shows "----" at 70% and above
Included accessories Chisel, cone, V-groove, hook, flat, extension

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MK21171   BG025   0.25 x 0.0001 lb Digital Force Gauge   Yes   2,581,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK21172   BG05   0.5 x 0.0002 lb Digital Force Gauge   Yes   2,581,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2118   BG2   2 x 0.001 lb Digital Force Gauge   Yes   2,149,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2117   BG5   5 x 0.002 lb Digital Force Gauge   Yes   2,149,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2119   BG10   10 x 0.005 lb Digital Force Gauge   Yes   2,149,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2122   BG20   20 x 0.01 lb Digital Force Gauge   Yes   2,149,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2120   BG50   50 x 0.02 lb Digital Force Gauge   Yes   2,149,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2121   BG100   100 x 0.05 lb Digital Force Gauge   Yes   2,149,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK21311   BG200   200 x 0.1 lb Digital Force Gauge   Yes   ¡¡
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2123   BG500   500 x 0.2 lb Digital Force Gauge   Yes   2,473,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
