| The IS-10 industrial and IS-11 non-clogging flush diaphragm pressure transmitters are designed |

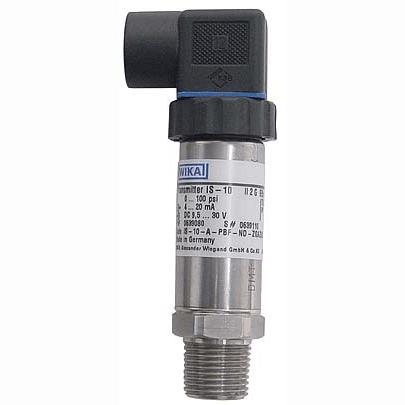

| The IS-10 industrial and IS-11 non-clogging flush diaphragm pressure transmitters are designed for industrial pressure measurement applications where intrinsically safe ratings are required. Each transmitter undergoes extensive testing and calibration to achieve an accuracy of 0.25% full scale. State-of-the-art surface mount technology ensures that the unit is protected against vibration, shock and humidity. Each unit is temperature compensated to assure accuracy and long-term stability under severe ambient temperature variations.
The compact design features all stainless steel wetted parts and is available with a variety of electrical and process connections to meet specific installation requirements. |
| |
|
Features |
- Approvals pending for Class I Division 1 and Class I Zone 0 locations when used with an approved barrier
- 4-20 mA 2-wire output signal
- Highly resistant to pressure spikes and vibration
|
| | | SPECIFICATIONS
|
Accuracy |
+ 0.25% Best Fit Straight Line |
| Wetted Parts |
316SS and PH17 – 4 SS (>= 400 psi) |
| Case |
316SS |
| Pressure Connection |
1/2" NPT Male |
| Power Supply |
10 – 30 V DC |
| Signal Output |
4 – 20mA, 2-wire |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| WKIS1030HGVAC |
|
|
|
Intrinsically Safe Pressure Transmitter, 30-0 Inches Hg Vacuum |
|
Yes |
|
1,026,000 |
| WKIS100050INWC |
|
|
|
Intrinsically Safe Pressure Transmitter, 0-50 Inches Water Column |
|
Yes |
|
853,200 |
| WKIS100100INWC |
|
|
|
Intrinsically Safe Pressure Transmitter, 0-100 Inches Water Column |
|
Yes |
|
853,200 |
| WKIS1000005PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 5 psi |
|
Yes |
|
853,200 |
| WKIS1000010PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 10 psi |
|
Yes |
|
853,200 |
| WKIS1000015PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 15 psi |
|
Yes |
|
853,200 |
| WKIS1000025PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 25 psi |
|
Yes |
|
853,200 |
| WKIS1000030PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 30 psi |
|
Yes |
|
853,200 |
| WKIS1000050PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 50 psi |
|
Yes |
|
853,200 |
| WKIS1000060PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 60 psi |
|
Yes |
|
853,200 |
| WKIS1000100PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 100 psi |
|
Yes |
|
853,200 |
| WKIS1000160PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 160 psi |
|
Yes |
|
853,200 |
| WKIS1000200PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 200 psi |
|
Yes |
|
853,200 |
| WKIS1000250PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 250 psi |
|
Yes |
|
853,200 |
| WKIS1025000PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 25000 psi |
|
Yes |
|
2,581,200 |
| WKIS1040000PSI |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 40000 psi |
|
Yes |
|
2,581,200 |
| WKIS1000015PSIA |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 15 psi absolute |
|
Yes |
|
1,026,000 |
| WKIS1000025PSIA |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 25 psi absolute |
|
Yes |
|
1,026,000 |
| WKIS1000050PSIA |
|
|
|
Intrinsically Safe Pressure Transmitter, 0 - 50 psi absolute |
|
Yes |
|
1,026,000 | | |
|
|
 | |
 |
|
 |
|
