| The Series NS800 Temperature Transmitter provides a previously unequalled level of performance |

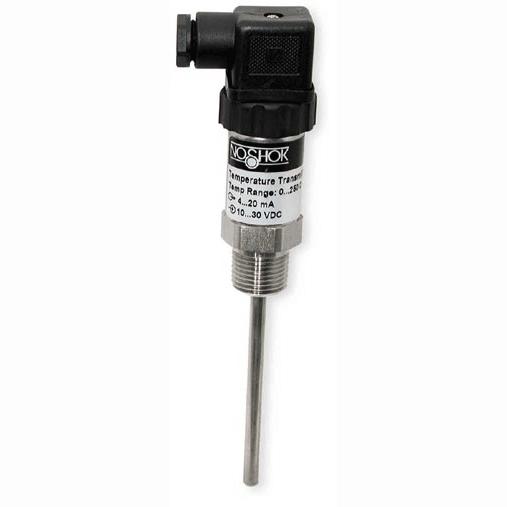

The Series NS800 Temperature Transmitter provides a previously unequalled level of performance, reliability and simplicity in one package. Utilizing proven 100 ohm platinum resistance technology coupled with a digital amplifier insures reliability and maximum performance.
A rigorous test and inspection process is performed prior to shipment to further insure 100% "out of the box" reliability. The NS800 Series Temperature Transmitters are also covered by an exclusive 3 Year Warranty. |
| |
|
Features |
- Proven Platinum 100 ohm Sensor
- Maximum Reliability
- Wide Variety of Temperature Ranges and Connections
- CE Compliant
|
| |
|
Applications |
- Water Systems
- Storage Tanks
- Industrial Machinery and Machine Tools
- HVAC Systems
- Refrigeration Systems
- Hydraulic Systems
|
| | | SPECIFICATIONS
|
Output Signal |
4-20mA 2 wire |
| Temperature Ranges |
Standard ranges from -40°F to 500°F |
| Accuracy |
+/-0.5% Full Scale |
| Power Supply |
12-30Vdc |
| Wetted Materials |
316 stainless steel |
| Case Material |
316 stainless steel |
| Ambient Temperature |
-40 to 185°F (-40 to 85°C) |
| Storage Temperature |
-40 to 185°F (-40 to 85°C) |
| Environmental Rating |
IP65 according to EN 60529/IEC529 |
| Electromagnetic Rating |
CE compliant to EMC norm EN 61326:1997/A1:1998
RFI, EMI and ESD Protection |
| Electrical Protection |
Reverse polarity, over-voltage and short circuit protection |
| Weight |
Approximately 4 oz. |
Transmitter Ordering Example
|
800-40/120-1-1-8-8-060-6 |
$175.00 |
| 800-25/125-1-1-8-8-060-6 |
175.00 |
| 800-0/200-1-1-8-8-060-6 |
175.00 |
| 800-50/500-1-1-8-8-040-6 |
175.00 |
| Description |
Price |
Order Information in Bold (gray area) |
|
|
|
Temperature Ranges |
|
-40/120 |
|
-40-120 °F |
|
25/125 |
N/C |
25-125 °F |
|
0/140 |
|
0-140 °F |
|
0/200 |
|
0-200 °F |
|
20/240 |
|
20-240 °F |
|
50/300 |
|
50-300 °F |
|
50/500 |
|
50-500 °F |
|
|
|
Accuracy |
|
1 |
N/C |
+/-0.5% Full Scale |
|
|
|
Output |
|
1 |
N/C |
4-20mA |
|
|
|
Other outputs available on special request |
|
|
Process Connection |
|
|
8 |
N/C |
1/2" NPT male |
|
|
Electrical Connection |
|
|
8 |
N/C |
Hirschmann (DIN 43650A with mating connector) |
|
1 |
11.35 |
36" Cable ( connected to option 8) |
|
|
Stem Length |
|
|
040 |
N/C |
4 inch |
|
060 |
4.50 |
6 inch |
|
090 |
6.00 |
9 inch |
|
120 |
8.00 |
12 inch |
|
|
Stem Diameter |
|
|
3 |
7.50 |
3 mm |
|
6 |
N/C |
6 mm |
|
8 |
3.00 |
8 mm |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| NS800 |
|
800 |
|
RTD Temperature Transmitter |
|
Yes |
|
378,000 |
| Must Specify: Temp Range, Output, Electrical Connection, Stem Length and Stem Diameter (See ordering information in above chart) | | |
|
|
 | |
 |
|
 |
|
