Programmable microprocessor- based energy profiler

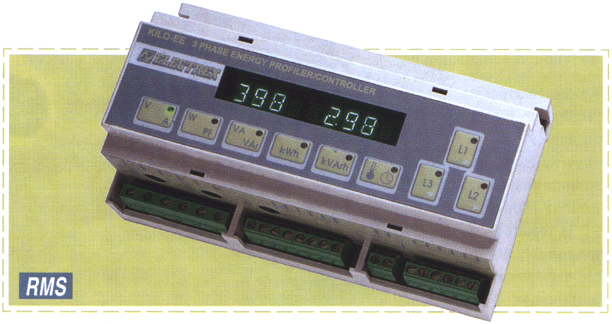

KILO-EE Three phase energy profiler & controller
Programmable microprocessor- based energy profiler and controller with memory for constant energy monitoring. Based on KILO technology, KILO-EE is equipped with all the same features.
KILO-EE is a new generation panel instrument designed for long-term energy profiling and analysis. Based on KILO technology, the KILO-EE analyser retains all the features and functions of the former: 2 load shedding/singnalling/control alarms, RS485 serial data transmission, 2 digital inputs for external pulse count and ADVANCED FUNCTION programming for user tailoring to specific application require-ments. KILO-EE is additionally equipped with an internal non-vola-tile static memory capable of stroing the energy and demand data required for accurate long-term power profiling. Information is automatically stored in a circular buffer that records DAYLY, MONTHLY and YEARLY profiles on a FIFO basis (First in, first out).
DAILY ENERGY PROFILE (PERIOD RESOLUTION)
The average demand of each integration period is recorded for a total of 6048 values. The overall storage time varies according to the parameters stored and the interval se-lected as shown in the table. Parameters are programmed by computer via the RS485 communication line.
Programmed parameters
Profile period
Selected interval (example)
10 min.
15 min.
30 min.
Demand (kW)
42 days
63 days
126 days
Demand (kW, Kvar, kVA, PF)
21 days
31 days
63 days
Demand (kW, Kvar, kVA, PF) Auxiliary Counters
14 days
21 days
42 days
MONTHLY ENERGY PROFILE (DAY RESOLUTION)
The total daily energy consumption (kWh + kvarh + auxiliary counters) of each of the last 60 days is recorded (FIFO mode). Storage is automatic and requires no programming.
YEARLY ENERGY PROFILE (WEEK RESOLUTION)
The total weekly energy consumption (kWh + kvarh + auxiliary counters) of each of the last 52 weeks is recorded (FIFO mode). Storage is automatic and requires no programming.
